LDialogColor::DoModalColor

#include "ltwrappr.h"

virtual L_INT LDialogColor::DoModalColor(hWndOwner)

HWND hWndOwner;

/* handle of the window which owns the dialog */

Displays the Color dialog box, which allows the user to pick a color.

Parameter

Description

hWndOwner

Handle of the window which owns the dialog.

Returns

SUCCESS_DLG_OK

The "OK" button was pressed, and the dialog exited successfully.

SUCCESS_DLG_CANCEL

The "Cancel" button was pressed, and the dialog exited successfully.

< 1

An error occurred. Refer to Return Codes.

Comments

LDialogColor::SetColorParams must be called before using this function to set the initial values for the dialog. You can get the updated COLORDLGPARAMS with the values entered by the user through the dialog by using LDialogColor::GetColorParams.

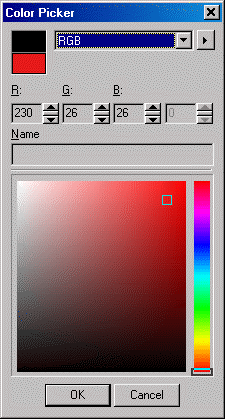

The Color dialog is shown in the following figure:


Required DLLs and Libraries

LTDLGCLR
LTDLGKRN
LTDLGUTL
LTDLGCTRL
LTDLGCOM
LTDIS
LTIMG

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:

LDialogBase::Initialize, Class Members

Topics:

Using Imaging Common Dialog



HSB-Brightness Based Model



HSB-Hue Based Model



HSB-Wheel Based Model



RGB-3D Additive Model



Lab-Device Independent Model



CMY-3D Subtractive Model



CMYK -3D Subtractive Model

Example

void TestFunction(LBitmap * pBitmap, HWND hWnd)
{
   LDialogColor DlgColor;
   DlgColor.Initialize(DLG_INIT_COLOR );
   DlgColor.SetBitmap(pBitmap);

   COLORDLGPARAMS DlgParams;

   memset ( &DlgParams, 0, sizeof ( COLORDLGPARAMS ) ) ;

   DlgParams.uStructSize      = sizeof ( COLORDLGPARAMS ) ;
   DlgParams.uDlgFlags = DLG_COLOR_SHOW_OLDCOLOR              |
                      DLG_COLOR_SHOW_NEWCOLOR              |
                      DLG_COLOR_SHOW_NAME                  |
                      DLG_COLOR_COLORSPACE_SHOW_HUE        |
                      DLG_COLOR_COLORSPACE_SHOW_BRIGHTNESS |
                      DLG_COLOR_COLORSPACE_SHOW_WHEEL      |
                      DLG_COLOR_COLORSPACE_SHOW_RGB        |
                      DLG_COLOR_COLORSPACE_SHOW_CMY        |
                      DLG_COLOR_COLORSPACE_SHOW_CMYK       |
                      DLG_COLOR_COLORSPACE_SHOW_LAB        |
                      DLG_COLOR_COLORMODEL_SHOW_RGB        |
                      DLG_COLOR_COLORMODEL_SHOW_HSB        |
                      DLG_COLOR_COLORMODEL_SHOW_HLS        |
                      DLG_COLOR_COLORMODEL_SHOW_CMY        |
                      DLG_COLOR_COLORMODEL_SHOW_CMYK       |
                      DLG_COLOR_COLORMODEL_SHOW_LAB ;

   DlgColor.EnableCallBack(FALSE);
   DlgColor.EnablePreview(TRUE);
   DlgColor.EnableAutoProcess(TRUE);
   DlgColor.EnableToolbar(TRUE);
   DlgColor.SetColorParams(&DlgParams) ;
   DlgColor.DoModalColor(hWnd);

   // Gets the updated values for the structure
   DlgColor.GetColorParams(&DlgParams, sizeof(DlgParams)) ;
   DlgColor.Free();
}
