WPF Annotation Automation Cursors

Note: This topic is for Document/Medical only.

This feature displays different cursors for many tasks in In automated annotation mode different cursors for many task are being displayed. This feature displays unique annotation cursors in the following situations:

  • When hovering over a rotation gripper handle
  • When hovering over a rotation center handle
  • When hovering over any of the eight size handles-an appropriate arrow cursor is displayed depending on the handle and the rotation of The WPF annotation object
  • When dragging a selection
  • When using any of The WPF annotation tools.

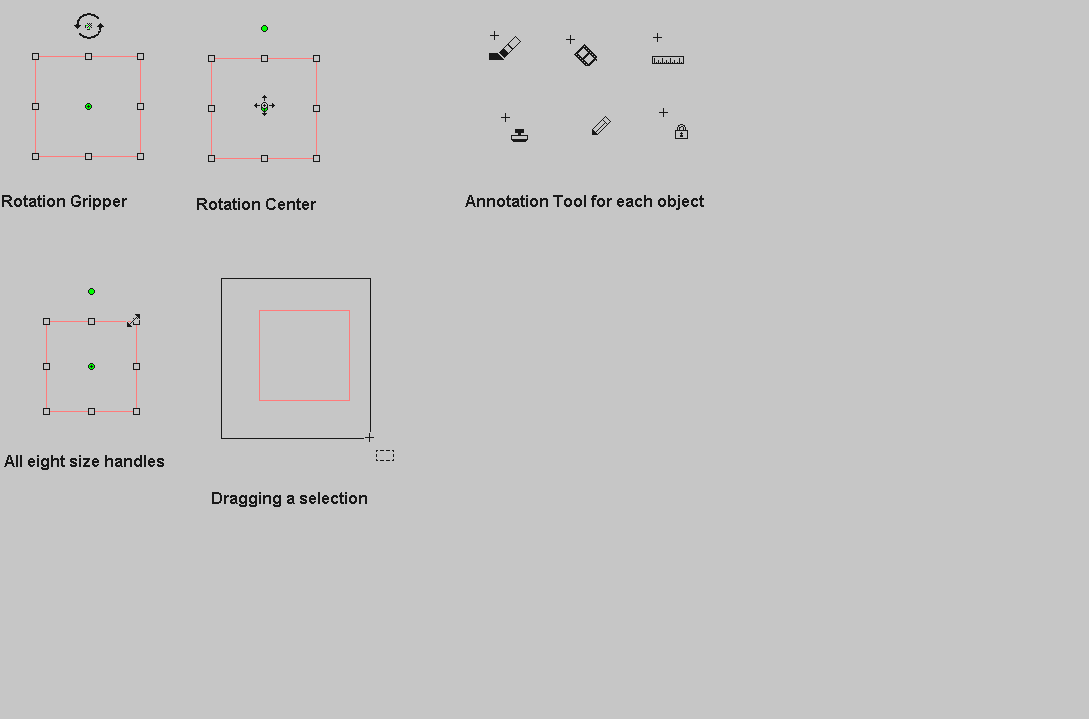

See the AnnAutomationManager class for more information about the different cursors that are available. The following figure shows some of the cursors that are available:
