L_DlgHTMLMapper

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_DlgHTMLMapper(hWndOwner, pDlgParams)

HWND hWndOwner;

/*owner of the dialog*/

LPHTMLMAPPERDLGPARAMS pDlgParams;

/*pointer to a structure*/

Displays the HTML Map Creator dialog, in order to create an HTML map upon an image. Use this dialog to create an HTML map area using the given bitmap.

Parameter

Description

hWndOwner

Handle of the window that owns the dialog.

pDlgParams

Pointer to a HTMLMAPPERDLGPARAMS structure used to initialize the dialog.

Comments

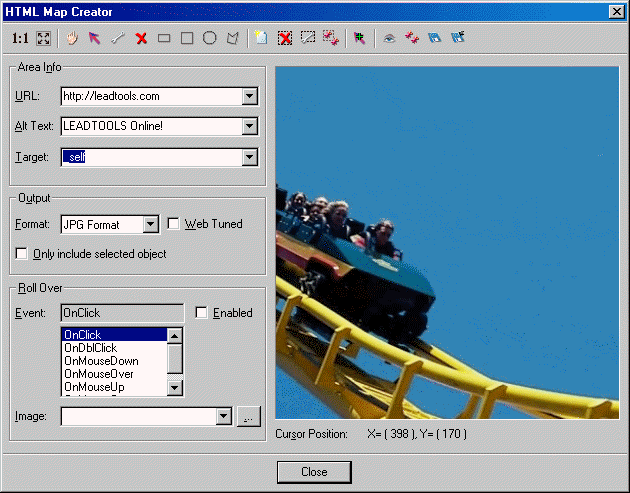

The HTML Map Creator dialog can be seen below:


This dialog also offers tuning options for the output bitmap through the dialogs displayed using L_DlgJPEGWebTuner, L_DlgGIFWebTuner and L_DlgPNGWebTuner.

Returns

SUCCESS_DLG_CLOSE

The "Close" button was pressed, and the dialog exited successfully.

< 1

An error occurred. Refer to Return Codes.

Required DLLs and Libraries

LTDLGWEB
LTDLGKRN
LTDLGUTL
LTDLGCTRL
LTDLGCOM
LTDIS
LTIMG
LTKRN

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:

L_DlgInit, L_DlgJPEGWebTuner, L_DlgGIFWebTuner, L_DlgPNGWebTuner

Topics:

Dialogs: HTML/Web



Using Imaging Common Dialog

Example

Example 1:

L_VOID ShowMapperDlg ( HWND hWnd, pBITMAPHANDLE pBitmap )
{
   HTMLMAPPERDLGPARAMS DlgParam ;

   // init dialog params
   memset ( &DlgParam, 0, sizeof ( HTMLMAPPERDLGPARAMS ) ) ;

   DlgParam.uStructSize = sizeof ( HTMLMAPPERDLGPARAMS ) ;
   DlgParam.pBitmap     = pBitmap ;

   // show the dialog
   L_DlgInit ( DLG_INIT_COLOR ) ;

   L_DlgHTMLMapper ( hWnd, &DlgParam ) ;

   L_DlgFree ( ) ;
}

Example 2:

L_VOID AllocHistoryEntries

   LPDLGHISTORYLIST pHistoryEntries
)
{
   if ( NULL != pHistoryEntries )
   {
      pHistoryEntries->ppszEntry = (L_TCHAR**)malloc ( pHistoryEntries->nEntryCount * sizeof (L_TCHAR* ) ) ;

      if ( NULL != pHistoryEntries->ppszEntry )
      {
         int nIndex ;

         for ( nIndex = 0; nIndex < pHistoryEntries->nEntryCount; nIndex++ )
         {
            pHistoryEntries->ppszEntry [ nIndex ] = NULL ;
         }

         for ( nIndex = 0; nIndex < pHistoryEntries->nEntryCount; nIndex++ )
         {
            pHistoryEntries->ppszEntry [ nIndex ] = (L_TCHAR*) malloc ( pHistoryEntries->nEntryLength * sizeof (L_TCHAR ) ) ;

            if ( NULL != pHistoryEntries->ppszEntry [ nIndex ] )
            {
               *pHistoryEntries->ppszEntry [ nIndex ] = 0 ;
            }
         }
      }
   }
}

L_VOID DeallocHistoryEntries

   LPDLGHISTORYLIST pHistoryEntries
)
{
   // clean up
   int nIndex;

   if ( NULL != pHistoryEntries->ppszEntry )
   {
      for (nIndex = 0; nIndex < pHistoryEntries->nEntryCount; nIndex++ )
      {
         if ( NULL != pHistoryEntries->ppszEntry [ nIndex ] )
         {
            free ( pHistoryEntries->ppszEntry [ nIndex ] ) ;
         }
      }

      free ( pHistoryEntries->ppszEntry ) ;
   }
}

L_VOID ShowMapperDlg ( HWND hWnd, pBITMAPHANDLE pBitmap )
{
   DLGHISTORYLIST HistoryList ;
   HTMLMAPPERDLGPARAMS  DlgParam ;

   // init history buffer
   HistoryList.uStructSize      = sizeof ( DLGHISTORYLIST ) ;
   HistoryList.nEntryCount      = 5 ;
   HistoryList.nValidEntryCount = 0 ;
   HistoryList.nEntryLength     = 15 ;

   AllocHistoryEntries ( &HistoryList ) ;

   // init dialog params
   memset ( &DlgParam, 0, sizeof ( HTMLMAPPERDLGPARAMS ) ) ;

   DlgParam.uStructSize = sizeof ( HTMLMAPPERDLGPARAMS ) ;
   DlgParam.pBitmap     = pBitmap ;
   DlgParam.uDlgFlags   = 0 ;
   DlgParam.pURLEntries = &HistoryList ;

   // show the dialog
   L_DlgInit ( DLG_INIT_COLOR ) ;

   L_DlgHTMLMapper ( hWnd, &DlgParam ) ;

   L_DlgFree ( ) ;

   // clean up
   DeallocHistoryEntries ( &HistoryList ) ;
}
