L_DlgHolePunchRemove

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_DlgHolePunchRemove(hWndOwner, pDlgParams)

HWND hWndOwner;	/* owner of dialog */
LPHOLEPUNCHREMOVEDLGPARAMS pDlgParams;	/* pointer to a HOLEPUNCHREMOVEDLGPARAMS structure */

This function displays the Hole Punch Remove box, and gets the options for L_HolePunchRemoveBitmap. This function is available in the Document/Medical toolkits.

Parameter	Description
hWndOwner	Handle of the window which owns the dialog.
pDlgParams	Pointer to a HOLEPUNCHREMOVEDLGPARAMS structure to be updated with the values entered by the user, through the dialog. Set members of this structure, before calling this function, to set the dialog’s initial values.

Returns

SUCCESS_DLG_OK	The "OK" button was pressed, and the dialog exited successfully.
SUCCESS_DLG_CANCEL	The "Cancel" button was pressed, and the dialog exited successfully.
< 1	An error occurred. Refer to Return Codes.

Comments

The L_HolePunchRemoveBitmap function only works with 1-bit images. If you provide a bitmap in the HOLEPUNCHREMOVEDLGPARAMS structure, it must be a 1-bit bitmap.

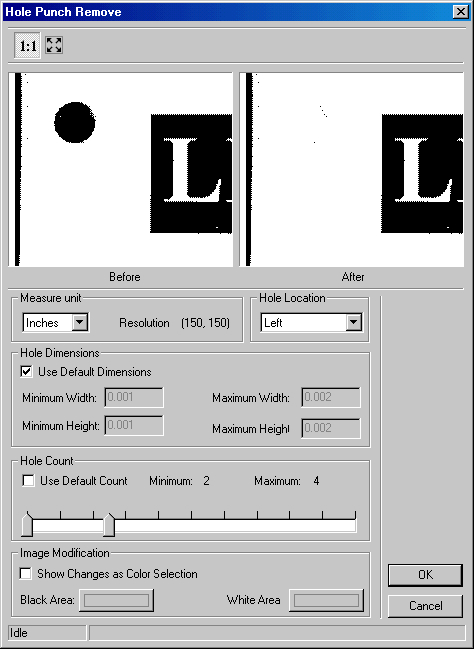

The Hole Punch Remove dialog can be seen below:

$image\HolePunchRemove.gif$

Required DLLs and Libraries

LTDLGIMGDOC
LTDLGKRN
LTDLGUTL
LTDLGCTRL
LTDLGCOM
LTDIS
LTIMG
LTKRN

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:	L_DlgInit, L_HolePunchRemoveBitmap
Topics:	Dialogs: Document Clean up
	Using Imaging Common Dialog

Example

L_VOID ShowDialog ( HWND hWnd, pBITMAPHANDLE pBitmap )
{
   HOLEPUNCHREMOVEDLGPARAMS DlgParams ;
   BITMAPHANDLE    BitmapRegion ;

   memset ( &DlgParams, 0, sizeof ( HOLEPUNCHREMOVEDLGPARAMS ) ) ;
   memset ( &BitmapRegion, 0, sizeof ( BITMAPHANDLE ) ) ;

   DlgParams.uStructSize                          = sizeof ( HOLEPUNCHREMOVEDLGPARAMS ) ;
   DlgParams.pBitmap                        = pBitmap ;
   DlgParams.HolePunchRemove.uStructSize          = sizeof ( HOLEPUNCH ) ;
   DlgParams.HolePunchRemove.pBitmapRegion = &BitmapRegion ;
   DlgParams.HolePunchRemove.uBitmapStructSize = sizeof ( BITMAPHANDLE );
   DlgParams.HolePunchRemove.iMinHoleWidth  = 1000 ;
   DlgParams.HolePunchRemove.iMinHoleHeight = 1000 ;
   DlgParams.HolePunchRemove.iMaxHoleWidth  = 1000 ;
   DlgParams.HolePunchRemove.iMaxHoleHeight = 1000 ;
   DlgParams.HolePunchRemove.iMinHoleCount  = 2 ;
   DlgParams.HolePunchRemove.iMaxHoleCount  = 4 ;
   DlgParams.HolePunchRemove.uFlags         = HOLEPUNCH_USE_DPI ;
   DlgParams.HolePunchRemove.iLocation      = HOLEPUNCH_RIGHT ;
   DlgParams.uDlgFlags                      = DLG_HOLEPUNCHREMOVE_SHOW_PREVIEW |
                                              DLG_HOLEPUNCHREMOVE_SHOW_TOOL_ZOOMLEVEL ;

   L_DlgInit ( DLG_INIT_COLOR ) ;
   L_DlgHolePunchRemove ( hWnd, &DlgParams ) ;
   if(L_BitmapHasRgn(&BitmapRegion))
      L_FreeBitmapRgn(&BitmapRegion);
   L_DlgFree ( ) ;
} ;
