L_DlgPrintPreview

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_DlgPrintPreview(hWndOwner, pDlgParams)

HWND hWndOwner;

/* owner of the dialog */

LPPRINTPREVIEWDLGPARAMS pDlgParams;

/* pointer to a structure */

Displays the print preview dialog box for a single image printing.

Parameter

Description

hWndOwner

Handle of the window that owns the dialog.

pDlgParams

Pointer to a PRINTPREVIEWDLGPARAMS structure to be updated with the values entered by the user through the dialog. Set members of this structure, before calling this function, to set the dialog's initial values.

Comments

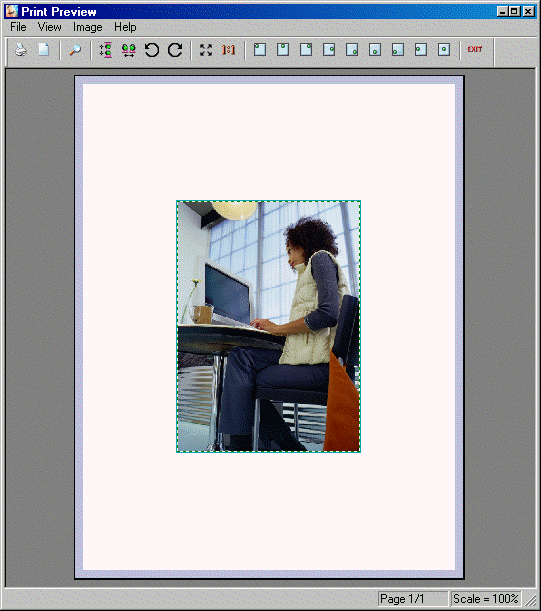

The Print Preview dialog for printing a single image can be seen below:


Returns

SUCCESS_DLG_EXIT

"Exit" was selected from the menu or the window was closed, and the dialog exited successfully.

< 1

An error occurred. Refer to Return Codes.

Required DLLs and Libraries

LTDLGFILE
LTDLGKRN
LTDLGUTL
LTDLGCTRL
LTDLGCOM
LTFIL
LTDIS
LTIMG
LTKRN

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:

L_DlgInit, L_DlgPrintStitchedImages, L_PrintBitmapFast, L_PrintBitmap

Topics:

Dialogs: Printing



Using Imaging Common Dialog

Example

L_VOID DoPrintPreview

   HWND hWnd,
   pBITMAPHANDLE pBitmap
)
{
   PRINTPREVIEWDLGPARAMS DlgParams;


   memset ( &DlgParams, 0, sizeof ( PRINTPREVIEWDLGPARAMS ) ) ;

   DlgParams.uStructSize = sizeof ( PRINTPREVIEWDLGPARAMS ) ;
   DlgParams.pBitmap     = pBitmap ;
   DlgParams.nCmdShow    = SW_SHOW ;

   L_DlgInit ( DLG_INIT_COLOR ) ;

   L_DlgPrintPreview ( hWnd, &DlgParams ) ;

   L_DlgFree ( ) ;

   if ( DlgParams.hDevMode )
   {
      GlobalFree ( DlgParams.hDevMode ) ;
   }

   if ( DlgParams.hDevNames )
   {
      GlobalFree ( DlgParams.hDevNames ) ;
   }
}
