L_DlgZoomBlur

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_DlgZoomBlur (hWndOwner, pDlgParams)

HWND hWndOwner;	/* owner of dialog */
LPZOOMBLURDLGPARAMS pDlgParams;	/* pointer to a structure */

Displays the Zoom Blur dialog box, and gets the options for L_ZoomBlurBitmap. This function is available in the Raster Pro and above toolkits.

Parameter	Description
hWndOwner	Handle of the window which owns the dialog.
pDlgParams	Pointer to a ZOOMBLURDLGPARAMS structure to be updated with the values entered by the user, through the dialog. Set members of this structure, before calling this function, to set the dialog’s initial values.

Returns

SUCCESS_DLG_OK	The "OK" button was pressed, and the dialog exited successfully.
SUCCESS_DLG_CANCEL	The "Cancel" button was pressed, and the dialog exited successfully.
< 1	An error occurred. Refer to Return Codes.

Comments

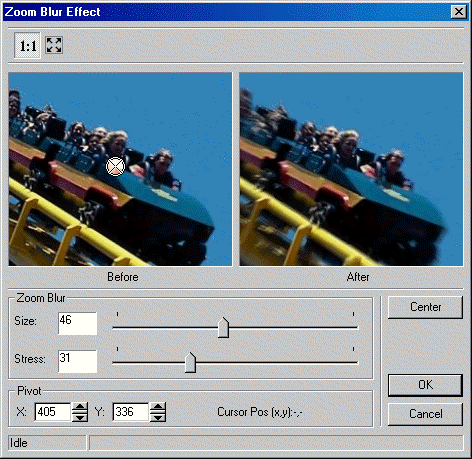

The Zoom Blur dialog can be seen below:

$image\ZoomBlur.gif$

This dialog has the following fields:

$image\Icon_Pivot.gif$ Pivot Section:

This section contains two edit boxes and a display area for setting the pivot point. You can also set the pivot point by right clicking on the Before view. The Pivot point $image\Icon_Pivot.gif$ appears on the point you just clicked.

X Edit box:

Use this to set the pivot's x-axis position in the image. Enter the value directly in the edit box or use the arrows to set the desired value.

Y Edit box:

Use this to set the pivot's y-axis position in the image. Enter the value directly in the edit box or use the arrows to set the desired value.

Cursor Pos (x,y)

Displays the mouse position with respect to the image.

Center Button:

Use the Center button to center the Before and After views with respect to $image\Icon_Pivot.gif$ the pivot point position.

Required DLLs and Libraries

LTDLGIMGEFX
LTDLGKRN
LTDLGUTL
LTDLGCTRL
LTDLGCOM
LTDIS
LTIMG
LTKRN

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:	L_DlgInit, L_ZoomBlurBitmap
Topics:	Dialogs: Artistic Effects
	Using Imaging Common Dialog

Example

L_VOID ShowDialog ( HWND hWnd, pBITMAPHANDLE pBitmap )
{
   ZOOMBLURDLGPARAMS DlgParams ;

   memset ( &DlgParams, 0, sizeof ( ZOOMBLURDLGPARAMS ) ) ;

   DlgParams.uStructSize = sizeof ( ZOOMBLURDLGPARAMS ) ;
   DlgParams.pBitmap = pBitmap ;
   DlgParams.uDlgFlags = DLG_ZOOMBLUR_SHOW_PREVIEW | DLG_ZOOMBLUR_SHOW_TOOL_ZOOMLEVEL;

   L_DlgInit ( 0 ) ;
   L_DlgZoomBlur ( hWnd, &DlgParams ) ;
   L_DlgFree ( ) ;
} ;
