L_DlgICCProfile

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_DlgICCProfile(hWndOwner, pDlgParams)

HWND hWndOwner;	/* owner of dialog */
LPICCPROFILEDLGPARAMS pDlgParams;	/* pointer to a structure */

Displays the ICC Profile dialog with load and/or save options.

Parameter	Description
hWndOwner	Handle of the window which owns the dialog.
pDlgParams	Pointer to an ICCPROFILEDLGPARAMS structure to be updated with the values entered by the user through the dialog. Set members of this structure, before calling this function, to set the dialog’s initial values.

Returns

SUCCESS_DLG_CLOSE	The "Close" button was pressed, and the dialog exited successfully.
< 1	An error occurred. Refer to Return Codes.

Comments

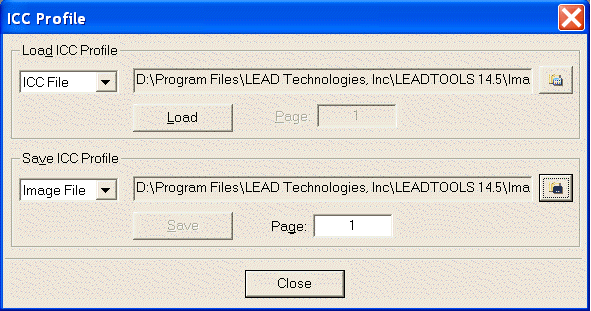

The ICC Profile dialog can be seen below.

Required DLLs and Libraries

LTDLGFILE
LTDLGKRN
LTDLGUTL
LTDLGCTRL
LTDLGCOM
LTFILLTDIS
LTIMGLTKRN
LTCLR

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:	L_DlgInit, L_DlgFree
Topics:	Dialogs: Maintenance and General Use
	Using Imaging Common Dialog

Example

L_INT ShowICCProfileDialog ( HWND hWnd )
{
    ICCPROFILEDLGPARAMS dlgParams ;

    ZeroMemory ( &dlgParams, sizeof ( ICCPROFILEDLGPARAMS ) ) ;
    dlgParams.uStructSize = sizeof ( ICCPROFILEDLGPARAMS ) ;
    lstrcpy (dlgParams.szLoadFile, TEXT("C:\\"));
    lstrcpy (dlgParams.szSaveFile, TEXT("C:\\"));
    dlgParams.uDlgFlags = DLG_ICCPROFILE_SHOW_LOAD|DLG_ICCPROFILE_SHOW_SAVE ;
    L_DlgICCProfile ( hWnd, &dlgParams ) ;
};
