L_DlgRemapIntensity

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_DlgRemapIntensity (hWndOwner, pDlgParams)

HWND hWndOwner;	/* owner of dialog */
LPREMAPINTENSITYDLGPARAMS pDlgParams;	/* pointer to a structure */

Displays the Remap Intensity dialog box, and gets the options for L_RemapBitmapIntensity.

Parameter	Description
hWndOwner	Handle of the window which owns the dialog.
pDlgParams	Pointer to a REMAPINTENSITYDLGPARAMS structure to be updated with the values entered by the user, through the dialog. Set members of this structure, before calling this function, to set the dialog’s initial values.

Returns

SUCCESS_DLG_OK	The "OK" button was pressed, and the dialog exited successfully.
SUCCESS_DLG_CANCEL	The "Cancel" button was pressed, and the dialog exited successfully.
< 1	An error occurred. Refer to Return Codes.

Comments

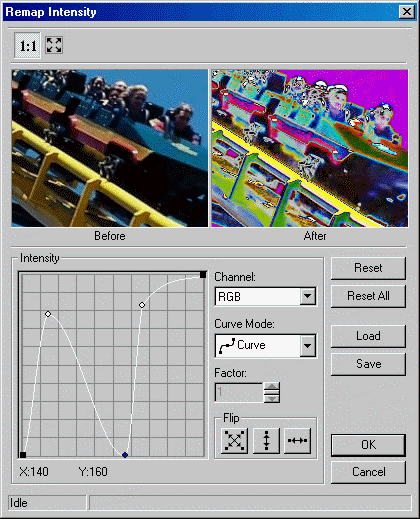

The Remap Intensity dialog can be seen below:

$image\RemapIntensity.gif$

This dialog has the following fields:

Channel Drop-down list box:

Use this to select the channel to remap. There are four choices:

- RGB: remap all channels.

- Red: remap the red channel.

- Green: remap the green channel.

- Blue: remap the blue channel.

Curve Mode Drop-down list box:

Use this to select the curve mode to use when remapping. There are four choices:

- $image\Control_Curve_Mode_Curve.gif$ Curve: remaps the selected channel using curve data.

- $image\Control_Curve_Mode_Linear.gif$ Linear: remaps the selected channel using linear data.

- Exponential: remaps the selected channel using exponential data, which is affected by the Factor value.

- Logarithm: remaps the selected channel using logarithmic data, which is affected by the Factor value.

Factor Edit box:

Use this to set the factor of the Exponential/Logarithm curve. Enter the value directly in the edit box or use the arrows to set the desired value.

Flip Buttons:

Use these buttons to flip the curve if the Curve Mode is either Curve or Linear. The following options are available:

- $image\Control_Curve_Flip_Both.gif$ Both. Flip the curve vertically and horizontally.

- $image\Control_Curve_Flip_Vertically.gif$ Vertically. Flip the curve vertically.

- $image\Control_Curve_Flip_Horizontal.gif$ Horizontally. Flip the curve horizontally.

Reset Button:

Use the Reset button to set the curve of the current channel to default values.

Reset All Button:

Use the Reset All button to set the curve for all the channels to default values.

Load Button:

Use the Load button to load an "*.lri" file that contains Remap Intensity curve settings, using the Load dialog. The loaded file will set a new curve for each channel.

NOTE: Loading curve settings will overwrite all current settings for all channels!

Save Button:

Use the Save button to save all the curve settings for all the channels into an "*.lri" file. This allows you set the same curve settings for other images by re-loading the file.

Required DLLs and Libraries

LTDLGCLR
LTDLGKRN
LTDLGUTL
LTDLGCTRL
LTDLGCOM
LTDIS
LTIMG
LTKRN

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:	L_DlgInit, L_RemapBitmapIntensity
Topics:	Dialogs: Color Manipulation
	Using Imaging Common Dialog
	Curve Control Dialog

Example

L_VOID ShowDialog ( HWND hWnd, pBITMAPHANDLE pBitmap )
{
   REMAPINTENSITYDLGPARAMS DlgParams ;

   memset ( &DlgParams, 0, sizeof ( REMAPINTENSITYDLGPARAMS ) ) ;

   DlgParams.uStructSize = sizeof ( REMAPINTENSITYDLGPARAMS ) ;
   DlgParams.pBitmap = pBitmap ;
   DlgParams.uChannel = CHANNEL_RED ;
   DlgParams.uDlgFlags = DLG_REMAPINTENSITY_SHOW_PREVIEW | DLG_REMAPINTENSITY_SHOW_TOOL_ZOOMLEVEL;

   L_DlgInit ( DLG_INIT_COLOR ) ;

   L_DlgRemapIntensity ( hWnd, &DlgParams ) ;

   if ( NULL != DlgParams.puRGBLookup )
   {
      GlobalFree ( DlgParams.puRGBLookup ) ;
   }

   if ( NULL != DlgParams.puRedLookup )
   {
      GlobalFree ( DlgParams.puRedLookup ) ;
   }

   if ( NULL != DlgParams.puGreenLookup )
   {
      GlobalFree ( DlgParams.puGreenLookup ) ;
   }

   if ( NULL != DlgParams.puBlueLookup )
   {
      GlobalFree ( DlgParams.puBlueLookup ) ;
   }

   L_DlgFree ( ) ;
} ;
