ShowMinFilterDlg method (LEADDlgImgEffect Control)
|
Builder Syntax |
int ShowMinFilterDlg(TWinControl* AOwnerCtrl); |
|
Delphi Syntax |
Function ShowMinFilterDlg (AOwnerCtrl: TWinControl ): L_INT; |
|
Overview |
Refer to Using Imaging Common Dialogs. |
Remarks
(Document/Medical only) Displays the Min Filter dialog box, and gets the options for the MinFilter method.
The layout and action of the dialog depends on the flags set in the DlgFlags property. Possible options are:
|
Value |
Meaning |
|
DLG_MINFILTER_AUTOPROCESS |
[$00000001] Process the image on OK. The LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method. |
|
DLG_MINFILTER_SHOW_CONTEXTHELP |
[$00000002] Dialog should contain a context sensitive help icon. |
|
DLG_MINFILTER_SHOW_PREVIEW |
[$00000004] Show a preview of the image in the dialog. The LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method. |
|
DLG_MINFILTER_SHOW_TOOL_ZOOMLEVEL |
[$00000008] Show the "Zoom to fit" and "Zoom Normal" toolbar buttons. The DLG_MINFILTER_SHOW_PREVIEW flag must be set in order to show these buttons. |
|
DLG_MINFILTER_SHOW_APPLY |
[$00000080] Show the Apply button in the dialog. The dialog will not apply any effect unless the user presses the Apply button. |
If you include DLG_MINFILTER_AUTOPROCESS or DLG_MINFILTER_SHOW_PREVIEW in the DlgFlags property, the LEADImage property must be assigned a Main Control containing a valid bitmap to the Common Dialog before calling this method.
The property associated with this dialog box is:
Dimension property.
To include a Help button in the dialog, set the ShowHelpButton property to TRUE.

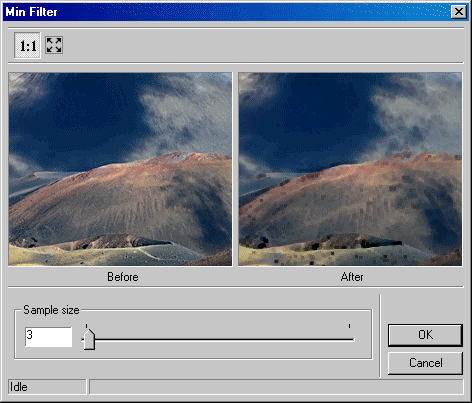

The Min Filter dialog can be seen below:
See Also
|
Elements: |
MinFilter method, Dimension property, ShowHelpButton property, ZoomToFit Property, DlgFlags property, EnableMethodErrors property, LEADImage property |
|
Topics: |
