GetLastKey Method
See Also
Leadtools.Dicom Namespace > DicomDataSet Class : GetLastKey Method




element
An item in the Data Set.
tree
true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.
Returns the last item in the Dicom Dir Data Set.

Syntax

Visual Basic (Declaration)
Public Function GetLastKey( _
   ByVal element As DicomElement, _
   ByVal tree As Boolean _
) As DicomElement
Visual Basic (Usage)Copy Code
Dim instance As DicomDataSet
Dim element As DicomElement
Dim tree As Boolean
Dim value As DicomElement

value = instance.GetLastKey(element, tree)
C#
public DicomElement GetLastKey(
   DicomElement element,
   bool tree
)
Managed Extensions for C++
public: DicomElement* GetLastKey(
   DicomElement* element,
   bool tree
)
C++/CLI
public:
DicomElement^ GetLastKey(
   DicomElement^ element,
   bool tree
)

Parameters

element
An item in the Data Set.
tree
true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.

Return Value

The last item in the Data Set, or a null reference (Nothing in Visual Basic) if the Data Set is empty.

Example

For an example, refer to Reset.

Remarks

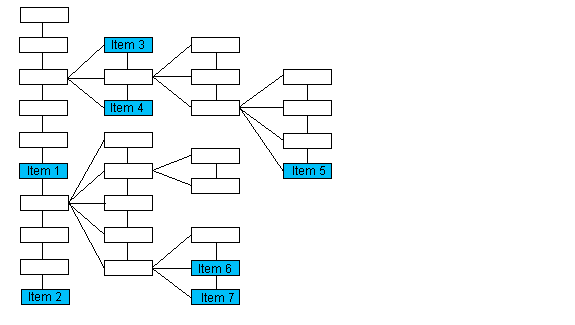

If the Data Set is evaluated as a tree structure, this method returns the last item on the same level as element with the same parent as element. Please note that the numbering of the items in the following illustration is arbitrary and does not imply order.

If the passed object points to:The method returns an object pointing to:
Item 1Item 2
Item 3Item 4
Item 5Item 5
Item 6Item 7
nullItem 2

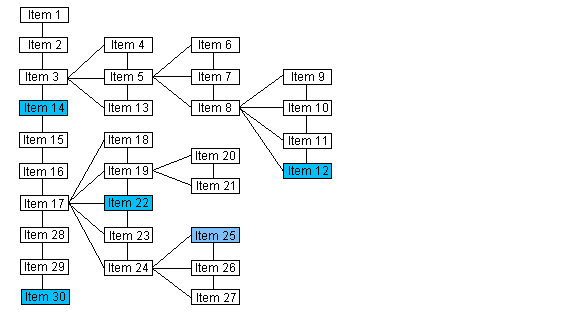

If the Data Set is evaluated as a list, the last item in the list is returned. Please note that the numbering of the items in the following illustration does indicate the order of the items when the Data Set is evaluated as a list.

If the passed object points to:The method returns an object pointing to:
nullItem 30
Item 12Item 30
Item 14Item 30
Item 22Item 30
Item 25Item 30

The following methods will also help you navigate the Data Set as either a tree or a list:

GetFirstKey

GetNextKey

GetPreviousKey

If you evaluate the Data Set as a tree, you can also use the following methods to navigate the tree:

GetRootKey

GetParentKey

GetChildKey

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
