Visual Basic (Declaration) | |
---|---|
Public Sub StartDithering( _ ByVal palette() As RasterColor, _ ByVal colors As Integer _ ) |
Visual Basic (Usage) | Copy Code |
---|---|
|
C# | |
---|---|
public void StartDithering( RasterColor[] palette, int colors ) |
Managed Extensions for C++ | |
---|---|
public: void StartDithering( RasterColor[]* palette, int colors ) |
C++/CLI | |
---|---|
public: void StartDithering( array<RasterColor>^ palette, int colors ) |
Parameters
- palette
- The palette this uses for dithering. You can specify your own palette, or use a null reference (Nothing in Visual Basic) for LEAD's fixed palette.
- colors
- Number of colors used in the palette. If the palette contains more colors, only the first colors colors are used. Valid values are 2 to 256.
This example dithers each line in one image and writes it to another image.

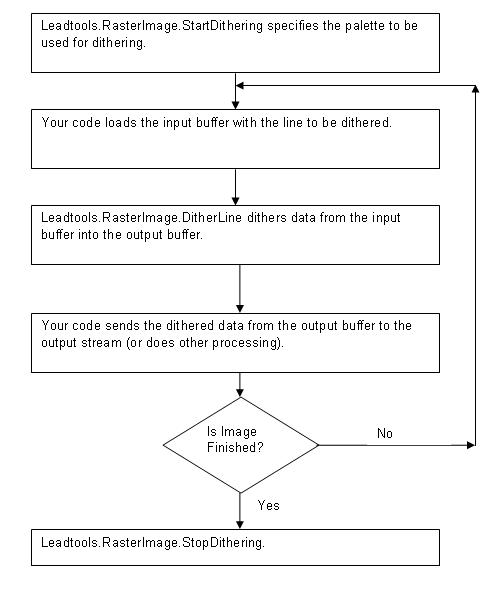

The following flow chart shows how the methods relate to each other:
The following properties from the RasterImage are used to control the dithering operation:
Width Height BitsPerPixel Order - if BitsPerPixel is greater than 8 DitheringMethod - if BitsPerPixel is less than 16
This method does not support signed images.
For more information, refer to Processing an Image.
Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
Reference
RasterImage ClassRasterImage Members
Processing an Image
Dithering Methods
Codecs.CodecsThumbnailOptions.DitheringMethod property
ImageProcessing.ColorResolutionCommand.DitheringMethod property
RasterDitheringMethod enumeration
RasterDefaults.DitheringMethod property
RasterImage.DitheringMethod property
RasterImage.DitherLine method
RasterImage.StopDithering method
RasterBufferConverter.Convert
