DisplacementCommand Class
See Also  Members   Example
Leadtools.ImageProcessing.Effects Namespace : DisplacementCommand Class




Displaces image pixels horizontally and vertically according to the values of the displacement map image. This command is available in the Raster Pro and above toolkits.

Syntax

Visual Basic (Declaration)
Public Class DisplacementCommand
   Inherits RasterCommand
   Implements IRasterCommand
Visual Basic (Usage)Copy Code
Dim instance As DisplacementCommand
C#
public class DisplacementCommand : RasterCommand, IRasterCommand
Managed Extensions for C++
public __gc class DisplacementCommand : public RasterCommand, IRasterCommand
C++/CLI
public ref class DisplacementCommand : public RasterCommand, IRasterCommand

Example

Visual BasicCopy Code
ImageProcessing.Effects.DisplacementCommand
   Public Sub DisplacementCommandExample()
      RasterCodecs.Startup()
      Dim codecs As New RasterCodecs()
      codecs.ThrowExceptionsOnInvalidImages = True

      Dim leadImage As RasterImage = codecs.Load("C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\Master.jpg")

      ' Prepare the command
      Dim fillColor As RasterColor = New RasterColor(0, 0, 0)
      Dim command As DisplacementCommand = New DisplacementCommand

      command.DisplacementMapImage = codecs.Load("C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\slave.jpg")
      command.HorizontalFactor = 17
      command.VerticalFactor = 24
      command.FillColor = fillColor
      command.Flags = DisplacementCommandFlags.NoChange Or DisplacementCommandFlags.StretchToFit
      command.Run(leadImage)
      codecs.Save(leadImage, "C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\Result.jpg", RasterImageFormat.Jpeg, 24)

      RasterCodecs.Shutdown()
   End Sub
C#Copy Code
ImageProcessing.Effects.DisplacementCommand
      public void DisplacementCommandExample()
      {
         // Load an image
         RasterCodecs.Startup();
         RasterCodecs codecs = new RasterCodecs();
         codecs.ThrowExceptionsOnInvalidImages = true;

         RasterImage image = codecs.Load(@"C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\Master.jpg");

         // Prepare the command
         RasterColor fillColor = new RasterColor(0, 0, 0);
         DisplacementCommand command = new DisplacementCommand();

         command.DisplacementMapImage = codecs.Load(@"C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\slave.jpg");
         command.HorizontalFactor = 17;
         command.VerticalFactor = 24;
         command.FillColor = fillColor;
         command.Flags = DisplacementCommandFlags.NoChange | DisplacementCommandFlags.StretchToFit;
         command.Run (image);

         RasterCodecs.Shutdown();
      }

Remarks

  • This command shifts image pixels according to the values of the displacement map. Red values in the displacement map shift the original pixels horizontally. Green values in the displacement map shift the original values vertically. Blue values are ignored. A displacement map value of 128 means not to shift anything. A displacement map value of 0 means to shift pixels the complete vertical or horizontal percentage, to the left or down. A displacement map value of 255 means to shift pixels the complete vertical or horizontal percentage, to the right or up.
  • Displacement maps modify the geometry of the object. As a result, pixel shifts and forms may be added to the image, and the image may be warped or distorted.
  • As an example, if you use the following image:

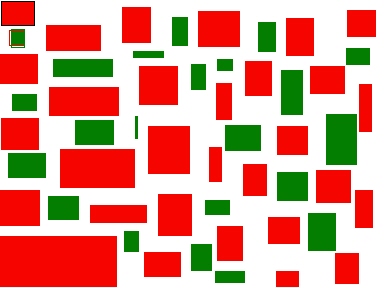

    And you were to use the following image as your displacement map:

    And you were to call DisplacementCommand using the following settings:
    ParameterValue
    HorizontalFactor17
    VerticalFactor24
    FillColorna
    FlagsDisplacementCommandFlags.NoChange | DisplacementCommandFlags.StretchToFit

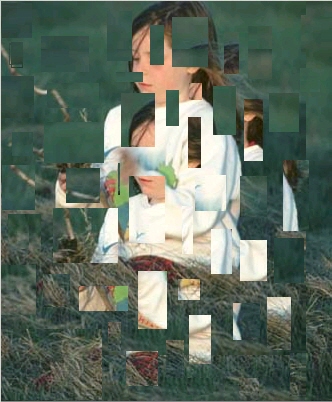

    The following figure results:
  • This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64 bit color images is available only in the Document/Medical toolkits.
  • This command does not support signed data images.
  • This command does not support 32-bit grayscale images.
For more information, refer to Removing Noise.
