Leadtools.Windows.Media.Effects Send comments on this topic. | Back to Introduction - All Topics | Help Version 15.02.15
OceanCommandBitmapEffect Class
See Also  Members   Example
Leadtools.Windows.Media.Effects.SpecialEffects Namespace : OceanCommandBitmapEffect Class





Reflects the image on an ocean surface.

Syntax

Visual Basic (Declaration)
Public Class OceanCommandBitmapEffect
   Inherits RasterCommandBitmapEffect
Visual Basic (Usage)Copy Code
Dim instance As OceanCommandBitmapEffect
C#
public class OceanCommandBitmapEffect : RasterCommandBitmapEffect
Managed Extensions for C++
public __gc class OceanCommandBitmapEffect : public RasterCommandBitmapEffect
C++/CLI
public ref class OceanCommandBitmapEffect : public RasterCommandBitmapEffect
XAML Property Element Usage

OceanCommandBitmapEffect ...

Example

Run the OceanCommandBitmapEffect on an image.

Visual BasicCopy Code
Public Sub OceanCommandBitmapEffectExample(ByVal element As FrameworkElement)
   Dim effect As OceanCommandBitmapEffect = New OceanCommandBitmapEffect()
   effect.Amplitude = 20
   effect.Frequency = 6
   effect.LowerTransparency = True
   element.BitmapEffect = effect

   Dim storyboard As Storyboard = New Storyboard()

   Dim animation1 As Int32Animation = New Int32Animation()
   animation1.From = 1
   animation1.To = 10
   animation1.Duration = New Duration(TimeSpan.Parse("0:0:2"))
   animation1.RepeatBehavior = RepeatBehavior.Forever
   animation1.AutoReverse = False

   storyboard.SetTargetName(animation1, "AnimatedBitmapEffect")
   storyboard.SetTargetProperty(animation1, New PropertyPath(OceanCommandBitmapEffect.AmplitudeProperty))
   element.RegisterName("AnimatedBitmapEffect", effect)
   storyboard.Children.Add(animation1)

   Dim animation2 As Int32Animation = New Int32Animation()
   animation2.From = 1
   animation2.To = 10
   animation2.Duration = New Duration(TimeSpan.Parse("0:0:2"))
   animation2.RepeatBehavior = RepeatBehavior.Forever
   animation2.AutoReverse = False

   storyboard.SetTargetName(animation2, "AnimatedBitmapEffect")
   storyboard.SetTargetProperty(animation2, New PropertyPath(OceanCommandBitmapEffect.FrequencyProperty))
   element.RegisterName("AnimatedBitmapEffect", effect)
   storyboard.Children.Add(animation2)

   storyboard.Begin(element)
End Sub
C#Copy Code
public void OceanCommandBitmapEffectExample(FrameworkElement element)
{
   OceanCommandBitmapEffect effect = new OceanCommandBitmapEffect();
   effect.Amplitude = 20;
   effect.Frequency = 6;
   effect.LowerTransparency = true;
   element.BitmapEffect = effect;

   Storyboard storyboard = new Storyboard();

   Int32Animation animation1 = new Int32Animation();
   animation1.From = 1;
   animation1.To = 10;
   animation1.Duration = new Duration(TimeSpan.Parse("0:0:2"));
   animation1.RepeatBehavior = RepeatBehavior.Forever;
   animation1.AutoReverse = false;

   Storyboard.SetTargetName(animation1, "AnimatedBitmapEffect");
   Storyboard.SetTargetProperty(animation1, new PropertyPath(OceanCommandBitmapEffect.AmplitudeProperty));
   element.RegisterName("AnimatedBitmapEffect", effect);
   storyboard.Children.Add(animation1);

   Int32Animation animation2 = new Int32Animation();
   animation2.From = 1;
   animation2.To = 10;
   animation2.Duration = new Duration(TimeSpan.Parse("0:0:2"));
   animation2.RepeatBehavior = RepeatBehavior.Forever;
   animation2.AutoReverse = false;

   Storyboard.SetTargetName(animation2, "AnimatedBitmapEffect");
   Storyboard.SetTargetProperty(animation2, new PropertyPath(OceanCommandBitmapEffect.FrequencyProperty));
   element.RegisterName("AnimatedBitmapEffect", effect);
   storyboard.Children.Add(animation2);

   storyboard.Begin(element);
}
XAMLCopy Code
<Page Title="CSAnimateEffect" Height="391" Width="300" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:lteffects="clr-namespace:Leadtools.Windows.Media.Effects.SpecialEffects;assembly=Leadtools.Windows.Media.Effects">
  <Grid>
    <Image Margin="10,10,10,10" HorizontalAlignment="Center" VerticalAlignment="Center" Source="C:\Program Files\LEAD Technologies, Inc\LEADTOOLS 15\Images\slave.jpg">
      <Image.BitmapEffect>
        <lteffects:OceanCommandBitmapEffect x:Name="AnimatedBitmapEffect" Amplitude="0" Frequency="0" />
      </Image.BitmapEffect>
      <Image.Triggers>
        <EventTrigger RoutedEvent="Image.Loaded">
          <BeginStoryboard>
            <Storyboard>
              <Int32Animation Storyboard.TargetName="AnimatedBitmapEffect" Storyboard.TargetProperty="Amplitude" From="1" To="10" Duration="0:0:2" RepeatBehavior="Forever" AutoReverse="false" />
              <Int32Animation Storyboard.TargetName="AnimatedBitmapEffect" Storyboard.TargetProperty="Frequency" From="1" To="10" Duration="0:0:2" RepeatBehavior="Forever" AutoReverse="false" />
            </Storyboard>
          </BeginStoryboard>
        </EventTrigger>
      </Image.Triggers>
    </Image>
  </Grid>
</Page>

Remarks

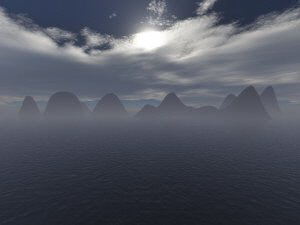

  • For an example, see the following figure:

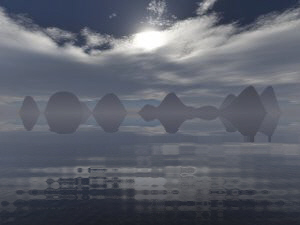

    The following figure shows the same image, after the effect has been applied:

    To obtain this effect, the following settings were used with the method:

    1. Amplitude = 15
    2. Frequency = 20
    3. LowerTransparency = true
  • This command does not support signed data images.

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Freezable
            System.Windows.Media.Animation.Animatable
               System.Windows.Media.Effects.BitmapEffect
                  Leadtools.Windows.Media.Effects.RasterCommandBitmapEffect
                     Leadtools.Windows.Media.Effects.SpecialEffects.OceanCommandBitmapEffect

Requirements

Target Platforms: Microsoft .NET Framework 3.0, Windows XP, Windows Vista, and Windows Server 2003
