The LEAD MCMP/MJPEG Video Codec is a DirectShow Ò and Microsoft Video For WindowsÒ (VFW) filter for compressing and decompressing video data using the LEAD CMP and JPEG Joint Photographic Experts Group- commonly used method of compression for photographic images compression algorithms. The compressed video data can be stored inside AVI files, with or without the audio data.  MJPEG, which is also known as Motion JPEG, is a motion video adaptation of the JPEG standard for still photos. MJPEG treats a video stream The portion of the file holding the video data. The video data might be compressed to save disk space. The data has to be decompressed using a video decompressor before you can play (see) it. as a series of still photos, compressing each frame individually, and uses no interframe compression.

MCMP, or Motion CMP, is a motion video adaptation of LEAD's proprietary CMP compression code. MCMP delivers smaller file sizes and can maintain better image quality than MJPEG, with the same or better image quality.

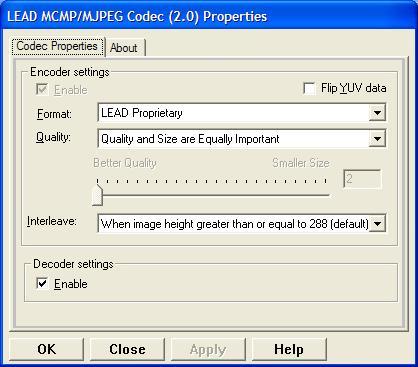

High-speed compression (intraframe only), quick random access to every frame when searching, and the ability to generate a lossless stream enable this codec to be used for wide range of applications such as real time video capturing, video conferencing, remote monitoring and medical imaging. The property page is shown in the following figure:


Changes will be applied only when filter’s state is stopped with the ability to set them permanently by clicking Apply or OK, or abandon them by clicking Cancel. Positioning the mouse pointer over a control displays the general information for that control. The property page is shown in the following figure:

Control

Description

Encoder Settings

This group of controls provides options for controlling encoder settings.

Enable check box

Enables or disables the encoder settings

Flip YUV check box

Indicates how YUV video data is handled. If this box is clear, then YUV video with a positive height value  is handled as normal video, top side up. YUV video with a negative height value is handled as flipped video, bottom side up. If this box is selected, then YUV video with a positive height value is handled as flipped video, bottom side up, and YUV video with a negative height value is handled as normal, top side up.

Format drop-down list box

Sets the codec format. Possible values are:



Value

Meaning



LEAD Proprietary

LEAD’s MCMP format



Lossless JPEG

Lossless JPEG



JPEG 4:1:1

MJPEG 4:1:1 subsampling. Has a higher compression ratio than 4:2:2 and 4:4:4.



JPEG 4:2:2

MJPEG 4:2:2 subsampling. Lower compression ratio than 4:1:1, higher compression than 4:4:4.



JPEG 4:4:4

MJPEG 4:4:4 subsampling

Quality drop-down list box and slider bar

Sets the quality factor for compression. A QFactor of 2 has the highest quality and lowest compression ratio. As the QFactor increases, the quality decreases and the compression ratio increases. A QFactor of 255 has the lowest quality and highest compression ratio. Possible values for each format are:



Format

Possible values



LEAD Proprietary

-9...-1 and 2...255 where negative values represent:





Perfect quality option 1





Perfect quality option 2





Quality far more important than size





Quality more important than size





Quality and size are equally important





Size more important than quality - Sharp





Size more important than quality - Less Tiling





Max Compression, keeping quality as good as possible





Max compression



Lossless JPEG

QFactor is ignored for lossless JPEG.



JPEG 4:1:1

2...255



JPEG 4:2:2

2...255



JPEG 4:4:4

2...255



There is also a Custom selection. When this item is selected, the value can be selected by moving the slider bar or by entering a value in the edit box.

Interleave drop-down list box

Sets the interleave options.



Value

Meaning



Never

Save images non-interleaved



When image height greater than or equal to 288 (default)

Interleave images with height >= 288



Always

Save interlaced MJPG files

Decoder Settings

This group of controls provides options for controlling decoder settings.

Enable check box

Enables or disables the decoder settings
