ShowHolePunchRemoveDlg method (ILEADRasterDlgImgDoc)

Syntax	short ShowHolePunchRemoveDlg (long hWnd);
Overview	Refer to Using Imaging Common Dialogs

Remarks

(Document/Medical only) Displays the Hole Punch Remove dialog box and gets the options for the HolePunchRemove method.

The layout and action of the dialog depends on the flags set in the UIFlags property. Possible options are:

Value	Meaning
HOLEPUNCHREMOVE_AUTOPROCESS	[0x00000001] process the image on OK. The Common Dialog Bitmap property must be assigned a valid 1-bit bitmap before calling this method.
HOLEPUNCHREMOVE_SHOW_CONTEXTHELP	[0x00000002] dialog should contain a context sensitive help icon.
HOLEPUNCHREMOVE_SHOW_PREVIEW	[0x00000004] show a preview of the image in the dialog. The Common Dialog Bitmap property must be assigned a valid 1-bit bitmap before calling this method.
HOLEPUNCHREMOVE_SHOW_TOOL_ZOOMLEVEL	[0x00000008] show the "Zoom to fit" and "Zoom Normal" toolbar buttons. The HOLEPUNCHREMOVE_SHOW_PREVIEW flag must be set in order to show these buttons.

If you include HOLEPUNCHREMOVE_AUTOPROCESS or HOLEPUNCHREMOVE_SHOW_PREVIEW in the UIFlags property, the Common Dialog Bitmap property must be assigned a valid 1-bit bitmap before calling this method.

The properties associated with this dialog box are:

Flags property

MinHoleCount property

MaxHoleCount property

MinHoleWidth property

MinHoleHeight property

MaxHoleWidth property

MaxHoleHeight property

Location property

DocCleanBitmap property

WhiteAreaColor property

BlackAreaColor Property

To include a Help button in the dialog, set the ShowHelpButton property to VARIANT_TRUE.

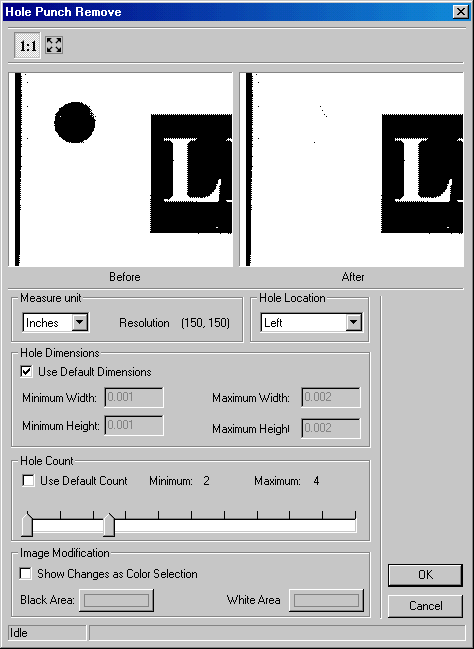

The Hole Punch Remove dialog can be seen below:

$image\HolePunchRemove.gif$
