Gets or sets the maximum number of wall slices (expressed as a percent of the total length of the line) that are allowed.
Syntax
| Visual Basic (Declaration) | |
|---|
<DataMemberAttribute(Name="MaximumWallPercent", IsRequired=True)>
Public Property MaximumWallPercent As Integer |
| Visual Basic (Usage) |  Copy Code |
|---|
Dim instance As LineRemoveRequest
Dim value As Integer
instance.MaximumWallPercent = value
value = instance.MaximumWallPercent
|
| C# | |
|---|
[DataMemberAttribute(Name="MaximumWallPercent", IsRequired=true)]
public int MaximumWallPercent {get; set;} |
Return Value
The maximum number of wall slices (expressed as a percent of the total length of the line)
that are allowed. A line consists of wall slices and non-wall slices (see description of Wall). This property specifies
the maximum number of wall slices (expressed as a percent of the total length of the line) that are allowed. Lines

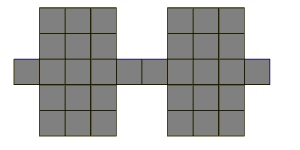

that have a wall percent that is larger than maximumWallPercent will not be removed. For example, consider the line
below that is 10 pixels in length, and 1 pixel in height in some places, and five pixels in height in other places.
Setting MinimumLineLength to 10 pixels and Wall to four pixels will identify the line below as a candidate for removal.

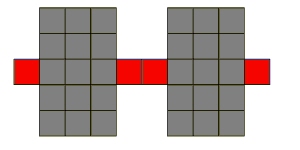

Note that the wall percent for this line is 60% (because six of ten line slices are walls). If MaximumWallPercent
is 80 then the line will be removed (actually, the pixels marked as red will be removed). If MaximumWallPercent is
30, then the line will not be removed.
Requirements
Target Platforms: Microsoft .NET Framework 3.0, Windows XP, Windows Server 2003 family, Windows Server 2008 family
