Places the image on parallel planes along the Z-axis.

Syntax

Visual Basic (Declaration)
Public Class PlaneCommandBitmapEffect Inherits RasterCommandBitmapEffect

Visual Basic (Usage)	Copy Code
`Dim instance As PlaneCommandBitmapEffect`

C#
public class PlaneCommandBitmapEffect : RasterCommandBitmapEffect

C++/CLI
public ref class PlaneCommandBitmapEffect : public RasterCommandBitmapEffect

XAML Property Element Usage
PlaneCommandBitmapEffect ...

XAML Property Element Usage
PlaneCommandBitmapEffect ...

Example

Visual Basic Copy Code

Visual Basic	Copy Code
Public Sub PlaneCommandBitmapEffectExample(ByVal element As FrameworkElement) Dim effect As PlaneCommandBitmapEffect = New PlaneCommandBitmapEffect() effect.Distance = 300 effect.CenterPoint = New System.Windows.Point(140, 95) effect.StartBright = 0 effect.EndBright = 100 effect.FillColor = Color.FromRgb(255, 255, 255) effect.Flags = PlaneCommandBitmapEffectsFlags.Right Or PlaneCommandBitmapEffectsFlags.Left Or PlaneCommandBitmapEffectsFlags.Color effect.PlaneOffset = 200 effect.PyramidAngle = 0 effect.Repeat = 5 effect.Stretch = 25 effect.ZValue = 0 effect.BrightColor = Color.FromRgb(255, 255, 255) effect.BrightLength = 2000 element.BitmapEffect = effect Dim storyboard As Storyboard = New Storyboard() Dim animation1 As Int32Animation = New Int32Animation() animation1.From = 300 animation1.To = 900 animation1.Duration = New Duration(TimeSpan.Parse("0:0:5")) animation1.RepeatBehavior = RepeatBehavior.Forever animation1.AutoReverse = True storyboard.SetTargetName(animation1, "AnimatedBitmapEffect") storyboard.SetTargetProperty(animation1, New PropertyPath(PlaneCommandBitmapEffect.DistanceProperty)) element.RegisterName("AnimatedBitmapEffect", effect) storyboard.Children.Add(animation1) storyboard.Begin(element) End Sub

Public Sub PlaneCommandBitmapEffectExample(ByVal element As FrameworkElement)

   Dim effect As PlaneCommandBitmapEffect = New PlaneCommandBitmapEffect()

   effect.Distance = 300

   effect.CenterPoint = New System.Windows.Point(140, 95)

   effect.StartBright = 0

   effect.EndBright = 100

   effect.FillColor = Color.FromRgb(255, 255, 255)

   effect.Flags = PlaneCommandBitmapEffectsFlags.Right Or PlaneCommandBitmapEffectsFlags.Left Or PlaneCommandBitmapEffectsFlags.Color

   effect.PlaneOffset = 200

   effect.PyramidAngle = 0

   effect.Repeat = 5

   effect.Stretch = 25

   effect.ZValue = 0

   effect.BrightColor = Color.FromRgb(255, 255, 255)

   effect.BrightLength = 2000

   element.BitmapEffect = effect



   Dim storyboard As Storyboard = New Storyboard()



   Dim animation1 As Int32Animation = New Int32Animation()

   animation1.From = 300

   animation1.To = 900

   animation1.Duration = New Duration(TimeSpan.Parse("0:0:5"))

   animation1.RepeatBehavior = RepeatBehavior.Forever

   animation1.AutoReverse = True



   storyboard.SetTargetName(animation1, "AnimatedBitmapEffect")

   storyboard.SetTargetProperty(animation1, New PropertyPath(PlaneCommandBitmapEffect.DistanceProperty))

   element.RegisterName("AnimatedBitmapEffect", effect)

   storyboard.Children.Add(animation1)



   storyboard.Begin(element)

End Sub

C# Copy Code

C#	Copy Code
public void PlaneCommandBitmapEffectExample(FrameworkElement element) { PlaneCommandBitmapEffect effect = new PlaneCommandBitmapEffect(); effect.Distance = 300; effect.CenterPoint = new Point(140, 95); effect.StartBright = 0; effect.EndBright = 100; effect.FillColor = Color.FromRgb(255, 255, 255); effect.Flags = PlaneCommandBitmapEffectsFlags.Right \| PlaneCommandBitmapEffectsFlags.Left \| PlaneCommandBitmapEffectsFlags.Color; effect.PlaneOffset = 200; effect.PyramidAngle = 0; effect.Repeat = 5; effect.Stretch = 25; effect.ZValue = 0; effect.BrightColor = Color.FromRgb(255, 255, 255); effect.BrightLength = 2000; element.BitmapEffect = effect; Storyboard storyboard = new Storyboard(); Int32Animation animation1 = new Int32Animation(); animation1.From = 300; animation1.To = 900; animation1.Duration = new Duration(TimeSpan.Parse("0:0:5")); animation1.RepeatBehavior = RepeatBehavior.Forever; animation1.AutoReverse = true; Storyboard.SetTargetName(animation1, "AnimatedBitmapEffect"); Storyboard.SetTargetProperty(animation1, new PropertyPath(PlaneCommandBitmapEffect.DistanceProperty)); element.RegisterName("AnimatedBitmapEffect", effect); storyboard.Children.Add(animation1); storyboard.Begin(element); }

public void PlaneCommandBitmapEffectExample(FrameworkElement element)
{
   PlaneCommandBitmapEffect effect = new PlaneCommandBitmapEffect();
   effect.Distance = 300;
   effect.CenterPoint = new Point(140, 95);
   effect.StartBright = 0;
   effect.EndBright = 100;
   effect.FillColor = Color.FromRgb(255, 255, 255);
   effect.Flags = PlaneCommandBitmapEffectsFlags.Right | PlaneCommandBitmapEffectsFlags.Left | PlaneCommandBitmapEffectsFlags.Color;
   effect.PlaneOffset = 200;
   effect.PyramidAngle = 0;
   effect.Repeat = 5;
   effect.Stretch = 25;
   effect.ZValue = 0;
   effect.BrightColor = Color.FromRgb(255, 255, 255);
   effect.BrightLength = 2000;
   element.BitmapEffect = effect;

   Storyboard storyboard = new Storyboard();

   Int32Animation animation1 = new Int32Animation();
   animation1.From = 300;
   animation1.To = 900;
   animation1.Duration = new Duration(TimeSpan.Parse("0:0:5"));
   animation1.RepeatBehavior = RepeatBehavior.Forever;
   animation1.AutoReverse = true;

   Storyboard.SetTargetName(animation1, "AnimatedBitmapEffect");
   Storyboard.SetTargetProperty(animation1, new PropertyPath(PlaneCommandBitmapEffect.DistanceProperty));
   element.RegisterName("AnimatedBitmapEffect", effect);
   storyboard.Children.Add(animation1);

   storyboard.Begin(element);
}

XAML Copy Code

XAML	Copy Code
<Page Title="CSAnimateEffect" Height="391" Width="300" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:lteffects="clr-namespace:Leadtools.Windows.Media.Effects.SpecialEffects;assembly=Leadtools.Windows.Media.Effects"> <Grid> <Image Margin="10,10,10,10" HorizontalAlignment="Center" VerticalAlignment="Center" Source="C:\Program Files\LEAD Technologies, Inc\LEADTOOLS 16\Images\slave.jpg"> <Image.BitmapEffect> <lteffects:PlaneCommandBitmapEffect x:Name="AnimatedBitmapEffect" BrightColor="White" FillColor="White" Distance="50" CenterPoint="140, 95" StartBright="0" EndBright="100" Flags="Right, Left, Color" PlaneOffset="200" PyramidAngle="0" Repeat="5" Stretch="25" ZValue="0" BrightLength="2000" /> </Image.BitmapEffect> <Image.Triggers> <EventTrigger RoutedEvent="Image.Loaded"> <BeginStoryboard> <Storyboard> <Int32Animation Storyboard.TargetName="AnimatedBitmapEffect" Storyboard.TargetProperty="Distance" From="300" To="900" Duration="0:0:5" RepeatBehavior="Forever" AutoReverse="true" /> </Storyboard> </BeginStoryboard> </EventTrigger> </Image.Triggers> </Image> </Grid> </Page>

<Page Title="CSAnimateEffect" Height="391" Width="300" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:lteffects="clr-namespace:Leadtools.Windows.Media.Effects.SpecialEffects;assembly=Leadtools.Windows.Media.Effects">
  <Grid>
    <Image Margin="10,10,10,10" HorizontalAlignment="Center" VerticalAlignment="Center" Source="C:\Program Files\LEAD Technologies, Inc\LEADTOOLS 16\Images\slave.jpg">
      <Image.BitmapEffect>
        <lteffects:PlaneCommandBitmapEffect x:Name="AnimatedBitmapEffect" BrightColor="White" FillColor="White" Distance="50" CenterPoint="140, 95" StartBright="0" EndBright="100" Flags="Right, Left, Color" PlaneOffset="200" PyramidAngle="0" Repeat="5" Stretch="25" ZValue="0" BrightLength="2000" />
      </Image.BitmapEffect>
      <Image.Triggers>
        <EventTrigger RoutedEvent="Image.Loaded">
          <BeginStoryboard>
            <Storyboard>
              <Int32Animation Storyboard.TargetName="AnimatedBitmapEffect" Storyboard.TargetProperty="Distance" From="300" To="900" Duration="0:0:5" RepeatBehavior="Forever" AutoReverse="true" />
            </Storyboard>
          </BeginStoryboard>
        </EventTrigger>
      </Image.Triggers>
    </Image>
  </Grid>
</Page>

Remarks

This command shows the effect of placing images on planes along the Z-axis and bending them toward a specific point. These images may be placed above, below, to the left or to the right of the Z-axis. An external light source of the specified color and brightness may be shined on the images. The brightness may vary along the z-axis according to the BrightLength value.
By changing CenterPoint and the viewing screen Z-offset, you can simulate moving along the axis.
For an example, see the following figure:

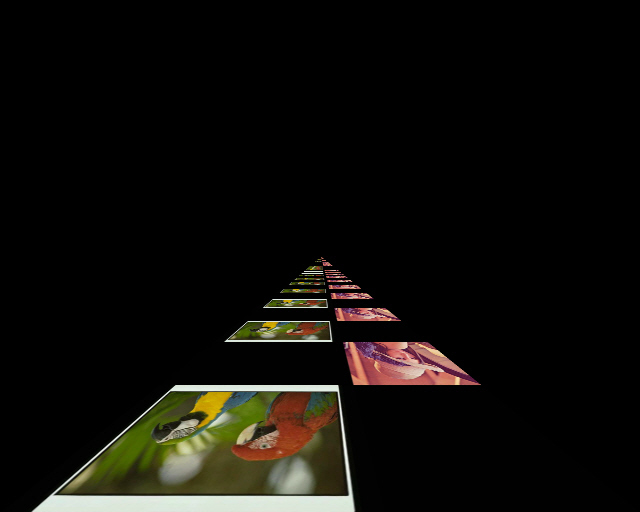

The following figure shows the same image, after the effect has been applied:

To obtain this effect, the following settings were used with the command:
1. CenterPoint = new System.Windows.Point(320, 256)
2. ZValue = 0
3. Distance = 256
4. PlaneOffset = 256
5. Repeat = -1
6. PyramidAngle = 0
7. Stretch = 100
8. StartBright = 0
9. EndBright = 0
10. BrightLength = 50
11. BrightColor = FromRgb(255, 255, 255)
12. FillColor = FromRgb(0, 0, 0)
13. Flags = PlaneCommandBitmapEffectsFlags.Down | PlaneCommandBitmapEffectsFlags.Color
This command does not support signed data images.

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Freezable
            System.Windows.Media.Animation.Animatable
               System.Windows.Media.Effects.BitmapEffect
                  Leadtools.Windows.Media.Effects.RasterCommandBitmapEffect
                     Leadtools.Windows.Media.Effects.SpecialEffects.PlaneCommandBitmapEffect

Requirements

Target Platforms: Microsoft .NET Framework 3.0, Windows XP, Windows Vista, Windows Server 2003 family, Windows Server 2008 family

Leadtools.Windows.Media.Effects	Send comments on this topic. \| Back to Introduction - LEADTOOLS WPF \| Help Version 16.5.9.25
