Member

Description

nSize

Size of this structure.

dwFlags

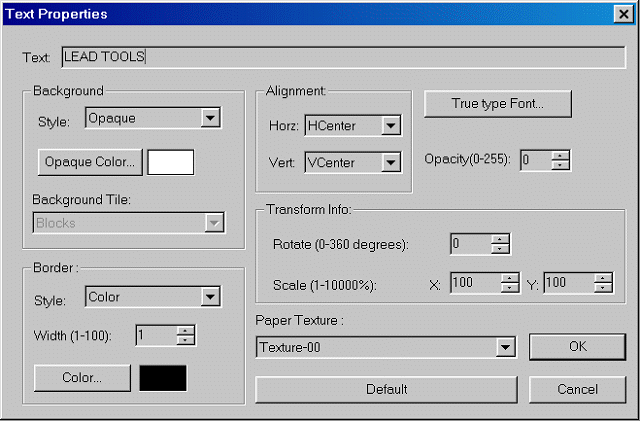

User interface flags for the dialog. Determines the layout and action of the dialog.

Possible values are:

Setting

Description

PAINT_DLG_TEXT_SHOWALL

[0x00000001] Show all controls

PAINT_DLG_TEXT_SHOWTEXT

[0x00000002] Show Text control

PAINT_DLG_TEXT_SHOWBKGRNDSTYLE

[0x00000004] Show Background style control

PAINT_DLG_TEXT_SHOWBKGRNDOPAQUECOLOR

[0x00000008] Show Background Opaque color control

PAINT_DLG_TEXT_SHOWBKGRNDTILE

[0x00000010] Show Background tile control

PAINT_DLG_TEXT_SHOWBORDERSTYLE

[0x00000020] Show Border style control

PAINT_DLG_TEXT_SHOWBORDERWIDTH

[0x00000040] Show border width control

PAINT_DLG_TEXT_SHOWBORDERCOLOR

[0x00000080] Show Border color control

PAINT_DLG_TEXT_SHOWHORZALIGNMENT

[0x00000100] Show Horizontal Alignment control

PAINT_DLG_TEXT_SHOWVERTALIGNMENT

[0x00000200] Show Vertical Alignment control

PAINT_DLG_TEXT_SHOWROTATE

[0x00000400] Show Rotate control

PAINT_DLG_TEXT_SHOWSCALE

[0x00000800] Show Scale control

PAINT_DLG_TEXT_SHOWTRUETYPEFONT

[0x00001000] Show True type font control

PAINT_DLG_TEXT_SHOWOPACITY

[0x00002000] Show Opacity control

PAINT_DLG_TEXT_SHOWTEXTURE

[0x00004000] Show Paper texture control

PAINT_DLG_TEXT_SHOWDEFAULT

[0x00008000] Show Default control

PAINT_DLG_TEXT_INITUSEDEFAULT

[0x00010000] Use the initial default values for the dialog control

pszTitle

Character string containing the Dialog box caption text.

pszText

Character string containing the text string to be drawn. The toolkit will copy this string to its internal data.

logFont

Handle to the font used to paint the text. This font should be a true type font. The toolkit will not copy this handle. Therefore, this font handle should still valid after setting this field.

nBorderBrushStyle

An enumerated type that indicates the text border (outline) style. For a list of possible values, refer to PAINTTEXTBORDERBRUSHSTYLE.

nBorderWidth

Value indicating the width of the text border, in pixels. Valid values are 1 to 100.

crBorderColor

COLORREF value that contains the text border (outline) color.

nBackgroundStyle

An enumerated type that indicates the text background style. For a list of possible values, refer to PAINTTEXTBACKSTYLE.

crBackgroundColor

COLORREF value that contains the text background color.

ppszBackgroundTileBitmap

Array of strings containing the names of the images used to fill the background tile bitmap combo box.

uBackgroundTileBitmapCount

Number of strings in ppszBackgroundTileBitmap.

nActiveBackgroundTileBitmapItem

Index of the currently selected image in the background tile combo box.

nAlignment

An enumerated type that indicates text alignment. For a list of possible values, refer to PAINTALIGNMENT.

nOpacity

Value that indicates the transparency of the text when combined with the painting canvas. Valid values are 0 to 255. A color or an image with an opacity of 255 is transparent A color or an image with an opacity of 0 is completely opaque (solid).

ppszPaperTexture

Array of strings containing the names of the images used to fill the paper texture combo box.

uPaperTextureCount

Number of strings in ppszPaperTexture.

nActivePaperTextureItem

Index of the currently selected image in the paper texture combo box.

TransformInfo

Structure that contains information used to transform the text output.

The nRotate structure field of TransformInfo will effect the text output result only when the nAlignment field is: (PAINT_ALIGNMENT_HCENTER | PAINT_ALIGNMENT_VCENTER )

Otherwise, the toolkit will consider nRotate to be 0.
