Member

Description

nSize

Size of this structure.

dwMask

Flags that indicate which structure members contain valid information. Possible values are:

Value

Meaning

PTF_ALL

All the fields contain valid data.

PTF_TEXT

The pszText field contains valid data.

PTF_FONT

The hFont field contains valid data.

PTF_BORDERBRUSHSTYLE

The nBorderBrushStyle field contains valid data.

PTF_BORDERWIDTH

The nBorderWidth field contains valid data.

PTF_BORDERCOLOR

The crBorderColor field contains valid data.

PTF_BACKGROUNDSTYLE

The nBackgroundStyle field contains valid data.

PTF_BACKGROUNDCOLOR

The crBackgroundColor field contains valid data.

PTF_BACKGROUNDTILEBITMAP

The pBackgroundTileBitmap field contains valid data.

PTF_ALIGNMENT

The nAlignment field contains valid data.

PTF_OPACITY

The nOpacity field contains valid data.

PTF_TEXTURE

The pTexture field contains valid data.

PTF_TRANSFORMINFO

The TransformInfo field contains valid data.

The values can be combined using the bit-wise OR operator ( | ).

pszText

Character string that contains the string to be drawn. The toolkit will copy this string to its internal data.

hFont

The font used to paint the text. This font should be a true type font. The toolkit will not copy this handle. Therefore, this font handle should still be valid after setting this field.

nBorderBrushStyle

An enumerated type that indicates the text border (outline) style. For a list of possible values, refer to PAINTTEXTBORDERBRUSHSTYLE.

nBorderWidth

Value that indicates the width or the text border, in pixels. Valid values are 1 to 100.

crBorderColor

The COLORREF value that specifies the color to use to draw the text border (outline).

nBackgroundStyle

An enumerated type that indicates the text background style. For a list of possible values, refer to PAINTTEXTBACKSTYLE.

crBackgroundColor

The COLORREF value that specifies the color to use for filling the text background when nBackgroundStyle is PAINT_TEXT_BACK_STYLE_OPAQUE.

pBackgroundTileBitmap

Pointer to the bitmap handle referencing the bitmap used to fill the text background when nBackgroundStyle is PAINT_TEXT_BACK_STYLE_TILEDIMAGE. The BITMAPHANDLE pointer should still be valid after setting this field.

nAlignment

An enumerated type that indicates text alignment. For a list of possible values, refer to PAINTALIGNMENT.

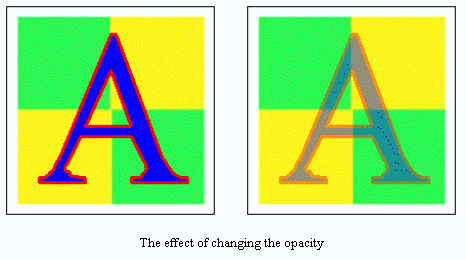

nOpacity

Value that indicates the transparency of the text when combined with the painting canvas. Valid values are 0 to 255. A color or an image with nOpacity of 255 is transparent. A color or an image with nOpacity of 0 is completely opaque (solid).

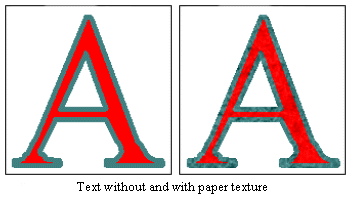

pTexture

Pointer to the bitmap handle referencing the bitmap that will simulate paper texture. Using a paper texture gives the appearance of painting on paper having that texture. The BITMAPHANDLE pointer should still be valid after setting this field.

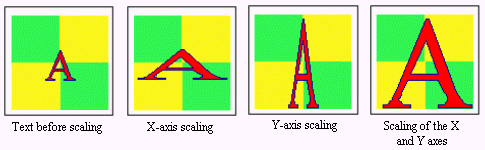

TransformInfo

Structure that contains information used to transform the text output.

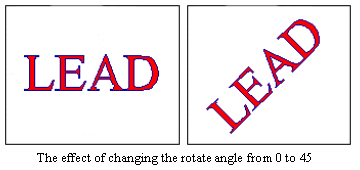

The nRotate structure field of TransformInfo will effect the text output result only when the nAlignment field is: (PAINT_ALIGNMENT_HCENTER | PAINT_ALIGNMENT_VCENTER )

Otherwise, the toolkit will consider nRotate to be 0.
