Write Options Dialog

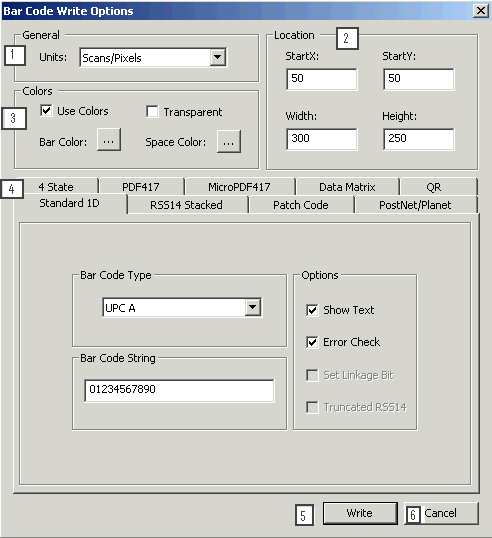

The Write Options dialog is shown below:



This dialog contains the following major options:

1.

General Group:



a.

Units Drop-down list box: Use this drop-down list box to select the unit of measure for writing barcodes.

2.

Location Group: Specifies the area in which to write the barcode. To specify the area, set the following members:



a.

StartX: Text edit box Use this text edit box to specify the X coordinate



b.

StartY: Text edit box Use this text edit box to specify the Y coordinate



c.

Width: Text edit box Use this text edit box to specify the width



d.

Height: Text edit box Use this text edit box to specify the height of the search box.

3.

Colors Group: Specifies colors that will be used for writing. The following are the color options:



a.

Use Colors Checkbox: Select this checkbox to enable writing color barcodes. If this checkbox is not selected, the demo will use the default barcode color, BLACK, and the default space color, WHITE to write the barcode.



b.

Transparent Checkbox: Select this checkbox to enable writing barcodes using a transparent color. This option is not recommended because the written barcodes can’t be read with all images.



c.

Bar Color Button: Click this button to open a Color dialog to select the bar color to use when writing barcodes.



d.

Space Color Button: Click this button to open a Color dialog to select the space color to use when writing barcodes.

4.

Symbol Types Tabs: Use these tabs to select options specific to a particular barcode type. The options available vary depending on the barcode symbol type being used. These can include options like:



a.

Bar Code Type Drop-down list box: Use this drop-down list box to select the subtype to write.



b.

Bar Code String Text edit box: Use this text edit box to enter the string to be written.

5.

Write button: Writes a barcode over the image, using the criteria set in this dialog.

6.

Cancel button: Click this button to cancel writing a barcode and close the dialog.
