AnnClosedCurveObject Class
See Also  Members
Leadtools.Annotations Namespace : AnnClosedCurveObject Class



The AnnClosedCurveObject Class is available in LEADTOOLS Document and Medical Imaging toolkits.

Defines a closed annotation curve object.

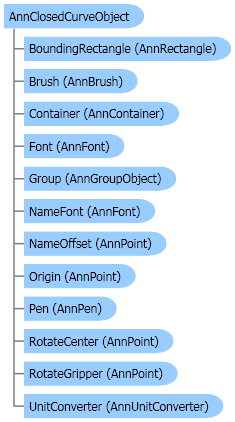

Object Model

AnnClosedCurveObject ClassAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPoint StructureAnnPoint StructureAnnUnitConverter Class

Syntax

Visual Basic (Declaration)
<SerializableAttribute()>
Public Class AnnClosedCurveObject
   Inherits AnnPolygonObject
   Implements ICloneableIDisposableISerializable
Visual Basic (Usage)Copy Code
Dim instance As AnnClosedCurveObject
C#
[SerializableAttribute()]
public class AnnClosedCurveObject : AnnPolygonObject, ICloneableIDisposableISerializable
C++/CLI
[SerializableAttribute()]
public ref class AnnClosedCurveObject : public AnnPolygonObject, ICloneableIDisposableISerializable

Example

This example creates a new closed curve object with 4 points.

Visual BasicCopy Code
Private Sub AnnClosedCurveObject_AnnClosedCurveObject(ByVal container As AnnContainer)
   Dim closedCurve As AnnClosedCurveObject = New AnnClosedCurveObject()
   closedCurve.Points.Add(New AnnPoint(100, 100, AnnUnit.Pixel))
   closedCurve.Points.Add(New AnnPoint(200, 100, AnnUnit.Pixel))
   closedCurve.Points.Add(New AnnPoint(200, 200, AnnUnit.Pixel))
   closedCurve.Points.Add(New AnnPoint(100, 300, AnnUnit.Pixel))
   closedCurve.Tension = 1
   closedCurve.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel))
   closedCurve.Brush = New AnnSolidBrush(Color.White)
   closedCurve.FillMode = FillMode.Alternate
   closedCurve.Closed = True
   container.Objects.Add(closedCurve)
End Sub
C#Copy Code
private void AnnClosedCurveObject_AnnClosedCurveObject(AnnContainer container)
{
   AnnClosedCurveObject closedCurve = new AnnClosedCurveObject();
   closedCurve.Points.Add(new AnnPoint(100, 100, AnnUnit.Pixel));
   closedCurve.Points.Add(new AnnPoint(200, 100, AnnUnit.Pixel));
   closedCurve.Points.Add(new AnnPoint(200, 200, AnnUnit.Pixel));
   closedCurve.Points.Add(new AnnPoint(100, 300, AnnUnit.Pixel));
   closedCurve.Tension = 1;
   closedCurve.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel));
   closedCurve.Brush = new AnnSolidBrush(Color.White);
   closedCurve.FillMode = FillMode.Alternate;
   closedCurve.Closed = true;
   container.Objects.Add(closedCurve);
}

Remarks

The closed curve object is a spline curve that contains a collection of AnnPoint points, a pen, a brush and a tension value. The curve can be AnnPolygonObject.Closed or not, and can also have a certain AnnPolygonObject.FillMode.

For more information about the closed curve annotation object refer to AnnClosedCurveObject. For more information about the automated closed curve annotation object, refer to Annotation Objects - Automated Features.

Inheritance Hierarchy

System.Object
   Leadtools.Annotations.AnnDrawable
      Leadtools.Annotations.AnnObject
         Leadtools.Annotations.AnnPolylineObject
            Leadtools.Annotations.AnnPolygonObject
               Leadtools.Annotations.AnnClosedCurveObject

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

See Also

Leadtools.Annotations requires a Document or Medical toolkit license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
