Load(Stream,Int64,Int64) Method
See Also
Leadtools.Codecs Namespace > RasterCodecs Class > Load Method : Load(Stream,Int64,Int64) Method



stream
A System.IO.Stream containing the image data to load.
offset
Offset from the beginning of the stream at which loading should start.
count
Total size of the image file data.
stream
A System.IO.Stream containing the image data to load.
offset
Offset from the beginning of the stream at which loading should start.
count
Total size of the image file data.
Loads an image file, letting you specify the location of the image data within the stream.

Syntax

Visual Basic (Declaration)
Overloads Public Function Load( _
   ByVal stream As Stream, _
   ByVal offset As Long, _
   ByVal count As Long _
) As RasterImage
Visual Basic (Usage)Copy Code
Dim instance As RasterCodecs
Dim stream As Stream
Dim offset As Long
Dim count As Long
Dim value As RasterImage

value = instance.Load(stream, offset, count)
C#
public RasterImage Load(
   Stream stream,
   long offset,
   long count
)
C++/CLI
public:
RasterImage^ Load(
   Stream^ stream,
   int64 offset,
   int64 count
)

Parameters

stream
A System.IO.Stream containing the image data to load.
offset
Offset from the beginning of the stream at which loading should start.
count
Total size of the image file data.

Return Value

The Leadtools.RasterImage object that this method loads.

Example

This example will load an image located in an offset into a stream

Visual BasicCopy Code
Public Sub LoadStreamOffset1Example()
      Dim codecs As RasterCodecs = New RasterCodecs()

      Dim srcFileName As String = Path.Combine(LEAD_VARS.ImagesDir, "Image1.cmp")
      Dim destFileName As String = Path.Combine(LEAD_VARS.ImagesDir, "Image1_LoadStreamOffset1.bmp")

      ' Create a memory stream, add a cutsom header then copy the content of the file
      ' into this stream.  After that, load the image from the stream given the offset

      Dim ms As MemoryStream = New MemoryStream()

      ' Add some custom header to the stream (4 bytes)
      Dim headerSize As Integer = 4
      Dim i As Integer = 0
      Do While i < headerSize
         ms.WriteByte(0)
         i += 1
      Loop

      ' Now append the file into this stream
      Dim fs As FileStream = File.OpenRead(srcFileName)

      Const bufferSize As Integer = 1024
      Dim buffer As Byte() = New Byte(bufferSize - 1) {}
      Dim bytesRead As Integer
      Do
         bytesRead = fs.Read(buffer, 0, bufferSize)
         If bytesRead > 0 Then
            ms.Write(buffer, 0, bytesRead)
         End If
      Loop While bytesRead > 0

      fs.Close()

      ' Reset the memory stream position to the beginning
      ms.Position = 0

      ' Now load the image with the offset
      Dim offset As Long = headerSize
      Dim count As Long = ms.Length - headerSize
      Dim image As RasterImage = codecs.Load(ms, offset, count)

      ' Save this image back to disk
      codecs.Save(image, destFileName, RasterImageFormat.Bmp, 24)
      image.Dispose()

      ' Clean up
      codecs.Dispose()
   End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
C#Copy Code
public void LoadStreamOffset1Example()
   {
      RasterCodecs codecs = new RasterCodecs();

      string srcFileName = Path.Combine(LEAD_VARS.ImagesDir, "Image1.cmp");
      string destFileName = Path.Combine(LEAD_VARS.ImagesDir, "Image1_LoadStreamOffset1.bmp");

      // Create a memory stream, add a cutsom header then copy the content of the file
      // into this stream.  After that, load the image from the stream given the offset

      MemoryStream ms = new MemoryStream();

      // Add some custom header to the stream (4 bytes)
      int headerSize = 4;
      for(int i = 0; i < headerSize; i++)
         ms.WriteByte(0);

      // Now append the file into this stream
      FileStream fs = File.OpenRead(srcFileName);

      const int bufferSize = 1024;
      byte[] buffer = new byte[bufferSize];
      int bytesRead;
      do
      {
         bytesRead = fs.Read(buffer, 0, bufferSize);
         if(bytesRead > 0)
            ms.Write(buffer, 0, bytesRead);
      }
      while(bytesRead > 0);

      fs.Close();

      // Reset the memory stream position to the beginning
      ms.Position = 0;

      // Now load the image with the offset
      long offset = headerSize;
      long count = ms.Length - headerSize;
      RasterImage image = codecs.Load(ms, offset, count);

      // Save this image back to disk
      codecs.Save(image, destFileName, RasterImageFormat.Bmp, 24);
      image.Dispose();

      // Clean up
      codecs.Dispose();
   }

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}
SilverlightCSharpCopy Code
SilverlightVBCopy Code

Remarks

This method can be used to load an image file that is embedded in another stream.

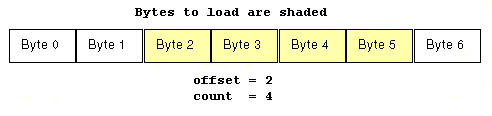

The location of the image is specified as shown in the following simple illustration:

LEADTOOLS will attempt to load corrupted files, so you can see at least a portion of the image. For these images, the load methods succeed, but LoadStatus will return an error code.

This method will load all the pages in a multipage file. The resulting image will have the same bits/pixel and color order value of the image as it was stored in the file.

LEADTOOLS will attempt to load corrupted files, so you can see at least a portion of the image. For these images, the load methods succeed, but LoadStatus will return an error code.

Use the CodecsLoadOptions class to set up other load options parameters before calling this method.

Support for 12 and 16-bit grayscale images is only available in the Document/Medical Imaging editions.

For supported formats, refer to Summary of All Supported Image File Formats.

LEADTOOLS loads all PDF files as Raster PDF uncompressed RasterImageFormat.RasPdf, regardless of the compression and color space used when saving the file.

Requirements

Target Platforms: Silverlight, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7, MAC OS/X (Intel Only)
