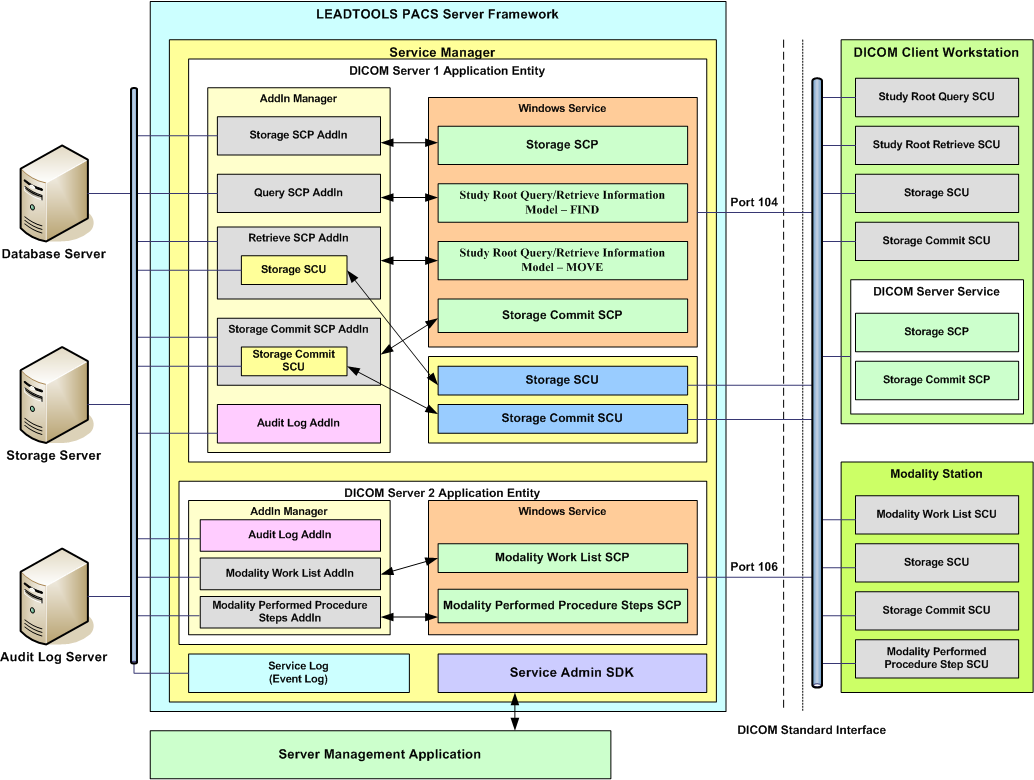

The following diagram shows the PACS Framework:

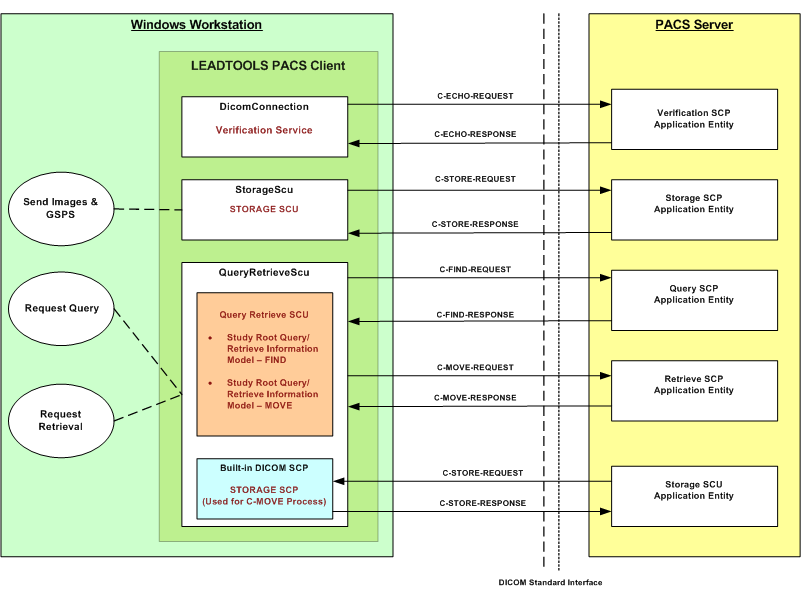

The following diagram shows how the Leadtools.Dicom.Scu interacts with a PACS server:
Supported Environments
The module comes in Win32 and x64 editions that can support development of software applications for any of the following environments:
-
Windows Vista
-
Windows XP
-
Windows 2000
System Requirements
In order to use the PACS Framework you will need the following components:
- .NET Framework 3.5
- Microsoft Unity 1.1
In addition, to run and compile the samples you need the following applications:
- Visual Studio 2005
- SQL Compact Edition 3.5
In addition to the above requirements, the logging addin requires the following application:
- Microsoft Enterprise Library Logging 4.0
