Matrix Property
See Also
Leadtools.Workflow.ImageProcessing Namespace > SpatialActivity Class : Matrix Property



The Matrix Property is available in LEADTOOLS Document and Medical Imaging toolkits.

Gets or sets the array of weighting factors.

Syntax

Visual Basic (Declaration)
Public Property Matrix As Integer()
Visual Basic (Usage)Copy Code
Dim instance As SpatialActivity
Dim value() As Integer

instance.Matrix = value

value = instance.Matrix
C#
public int[] Matrix {get; set;}
C++/CLI
public:
property array<int>^ Matrix {
   array<int>^ get();
   void set (    array<int>^ value);
}

Property Value

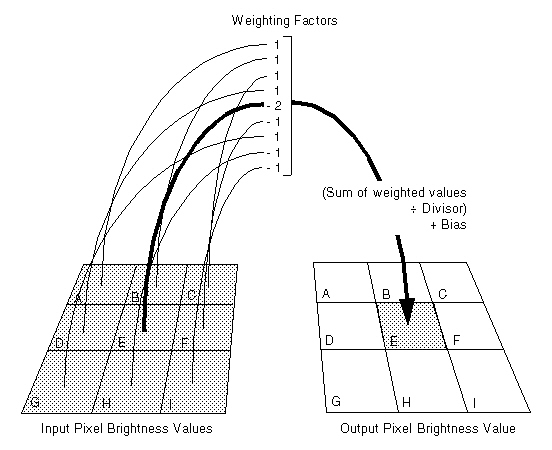

The array of weighting factors. The factors apply to pixels in the neighborhood read left to right and top to bottom in the ABC order shown below.

Requirements

Target Platforms: Microsoft .NET Framework 3.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

See Also

Leadtools.Workflow.ImageProcessing requires a Document or Medical toolkit license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
