L_DicomAddUserInfo

#include "ltdic.h"

L_LTDIC_API L_INT L_DicomAddUserInfo(hPDU, nType, pData, nLength)

HDICOMPDU hPDU;	/* a DICOM Associate handle */
L_UCHAR nType;	/* type */
L_UCHAR * pData;	/* user data */
L_UINT16 nLength;	/* length */

Appends a User-defined item to the specified DICOM Associate.

Parameter	Description
hPDU	A DICOM Associate handle.
nType	Type of the User-defined item.
pData	Buffer that contains the data for the User-defined item.
nLength	Length of the User-defined item.

Returns

0	SUCCESS
>0	An error occurred. Refer to Return Codes.

Comments

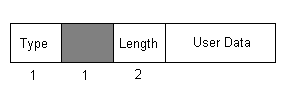

User-defined items may be included in the DICOM Associate to provide any other data the user finds necessary when establishing a DICOM Associate connection. The basic structure of the User-defined item is

$image\UserData.gif$

where the Type, Length and User Data are all determined by the user. The values shown are the lengths, in bytes, of the elements of the User-defined item.

Required DLLs and Libraries

LTDIC

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

Platforms

Win32, x64

Functions:	L_DicomGetUserInfoCount, L_DicomGetLengthUserInfo, L_DicomGetDataUserInfo, L_DicomGetTypeUserInfo, L_DicomSetUserInfo, L_DicomDelUserInfo
Topics:	Working with DICOM Associate Connections
