LRasterPaint::FillColorReplace

#include "Ltwrappr.h"

L_INT LRasterPaint::FillColorReplace(UserDC, crColor)

HDC UserDC;

/* handle to the device context */

COLORREF crColor;

/* the color to be replaced */

Replaces every pixel using the current fill settings.

Parameter

Description

UserDC

Handle to a device context, such as a screen, to use as a display surface. This parameter can also be NULL. The mapping mode of the device context must be MM_TEXT.

crColor

The COLORREF value that specifies the color to be replaced.

Returns

SUCCESS

The function was successful.

< 1

An error occurred. Refer to Return Codes

Comments

The filling procedure will be carried out using the current fill properties. To determine the current fill properties, call LRasterPaint::GetProperty. To set or change the current fill properties, call LRasterPaint::SetProperty. For more information on the fill properties, refer to the PAINTFILL structure.

Within the PAINTFILL structure, upper and lower tolerance values can be set for the color specified in crColor. For example, if the color passed to this function has an RGB value of 40, 40 , 200, and the lower tolerance and upper tolerance set in the PAINTFILL structure are 10, 10, 10, and 5, 5, 5, respectively, then this function will replace colors from 30, 30, 190 to 45, 45, 205.

If the UserDC is not NULL, the user should set the DC boundaries before calling this function, by calling LRasterPaint::SetDCExtents.

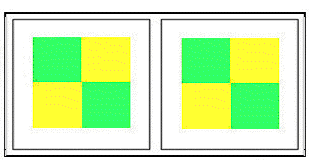

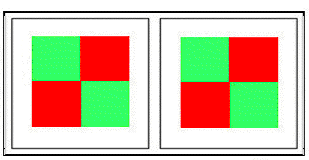

The images below show an example of the results of calling LRasterPaint::FillColorReplace.



Required DLLs and Libraries

LTPNT

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:

LRasterPaint::SetProperty, LRasterPaint::SetTransformation, LRasterPaint::SetClipRgn, LRasterPaint::SetMetrics, LRasterPaint::SetDCExtents, LRasterPaint::GetProperty, LRasterPaint::GetTransformation, LRasterPaint::GetClipRgn, LRasterPaint::GetDCExtents, LRasterPaint::FillBorder, LRasterPaint::FillSurface, LRasterDialog::DoModalFill, Class Members

Topics:

Filling an Area

Example

L_INT LRasterPaint_FillColorReplaceExample( CWnd* pWnd )
{
   L_INT          nRet;
   LRasterPaint   rstp;
   CDC*           pDC = pWnd->GetDC() ;
   PAINTSHAPE     shape ;
   PAINTFILL      fill ;
   RECT           rcShape ;
   RECT           rcDCExtents ;
   /* Initiate the Paint toolkit */
   nRet = rstp.Initialize ( );
   if(nRet != SUCCESS)
      return nRet;
   /* Set the required shape properties */
   shape.nSize                = sizeof ( PAINTSHAPE ) ;
   shape.dwMask               = PSF_BORDERWIDTH     |
                                PSF_BORDERCOLOR     |
                                PSF_BACKGROUNDCOLOR ;
   shape.nBorderWidth         = 10 ;
   shape.crBorderColor        = RGB ( 255, 0, 0 ) ;
   shape.crBackgroundColor    = RGB ( 255, 0, 0 ) ;
   /* Set the new shape properties  */
   nRet = rstp.SetProperty (PAINT_GROUP_SHAPE, &shape ) ;
   if(nRet != SUCCESS)
      return nRet;
   /* Set the coordinates with respect to the DC dimensions */
   SetRect ( &rcShape, 10, 10, 60, 60 ) ;
   /* Use the current shape properties to draw an ellipse to the DC (hDC) */
   nRet = rstp.DrawShapeEllipse ( pDC->m_hDC, &rcShape ) ;
   if(nRet != SUCCESS)
      return nRet;
   SetRect ( &rcShape, 100, 10, 150, 60 ) ;
   nRet = rstp.DrawShapeEllipse ( pDC->m_hDC, &rcShape ) ;
   if(nRet != SUCCESS)
      return nRet;
   SetRect ( &rcShape, 60, 60, 95, 95 ) ;
   nRet = rstp.DrawShapeRectangle ( pDC->m_hDC, &rcShape ) ;
   if(nRet != SUCCESS)
      return nRet;
   SetRect ( &rcShape, 10, 100, 60, 150 ) ;
   nRet = rstp.DrawShapeEllipse ( pDC->m_hDC, &rcShape ) ;
   if(nRet != SUCCESS)
      return nRet;
   SetRect ( &rcShape, 100, 100, 150, 150 ) ;
   nRet = rstp.DrawShapeEllipse ( pDC->m_hDC, &rcShape ) ;
   if(nRet != SUCCESS)
      return nRet;
   /* Get the destination DC dimensions */
   pWnd->GetClientRect ( &rcDCExtents ) ;
   /* Set the toolkit user DC extents */
   nRet = rstp.SetDCExtents ( &rcDCExtents ) ;
   if(nRet != SUCCESS)
      return nRet;
   /* Set the required fill properties */
   fill.nSize  = sizeof ( PAINTFILL ) ;
   fill.dwMask = PFF_STYLE ;
   fill.nStyle = PAINT_FILL_STYLE_GRADIENT ;
   /* Set the new fill properties */
   nRet = rstp.SetProperty ( PAINT_GROUP_FILL, &fill ) ;
   if(nRet != SUCCESS)
      return nRet;
   /* Fill the target area */
   nRet = rstp.FillColorReplace ( pDC->m_hDC, RGB ( 255, 0, 0 ) ) ;
   if(nRet != SUCCESS)
      return nRet;
   /* Free the paint tools handle */
   nRet = rstp.Free ( ) ;
   if(nRet != SUCCESS)
      return nRet;
   pWnd->ReleaseDC( pDC ) ;
   return SUCCESS ;
}
