Illustration of Line Styles for Annotations

Note: This topic is for Document/Medical only.

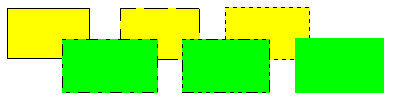

The following rectangle annotation objects illustrate the available line styles. Note that Windows displays all lines greater than 1 pixel as solid.

Back row:

Solid

Dash

Dot

Front row:

Dash-dot

Dash-dot-dot

Null
