Illustration of the Polygon Fill Mode for Annotations

Note: This topic is for Document/Medical only.

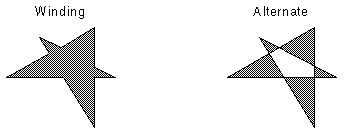

The following polygon annotation objects illustrate the available polygon fill modes.

Winding The area inside the resulting exterior lines is filled.

Alternate The filled area includes the area between odd-numbered and even-numbered polygon sides on each scan line.
