Tension Property (AnnClosedCurveObject)






Gets or sets a value that specifies the amount that this AnnClosedCurveObject curve bends between control points. This is a dependency property. .NET support Silverlight support
Syntax
public double Tension {get; set;}
'Declaration

Public Property Tension As Double
'Usage

Dim instance As AnnClosedCurveObject
Dim value As Double

instance.Tension = value

value = instance.Tension
public double Tension {get; set;}
 get_Tension();
set_Tension(value);
public:
property double Tension {
   double get();
   void set (    double value);
}

Property Value

A value that specifies the amount that this AnnClosedCurveObject curve bends between control points.
Remarks

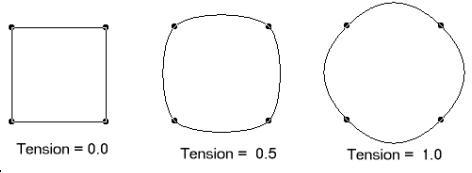

Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap:
Example

For XAML example, refer to AnnClosedCurveObject.

For C#/VB examples, refer to AnnClosedCurveObject.

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

AnnClosedCurveObject Class
AnnClosedCurveObject Members
