LEADTOOLS Annotations (Leadtools.Annotations assembly)
LEAD Technologies, Inc

Tension Property (AnnClosedCurveObject)






Gets or sets a value that specifies the amount that this AnnClosedCurveObject curve bends between control points.
Syntax
public virtual float Tension {get; set;}
'Declaration

Public Overridable Property Tension As Single
'Usage

Dim instance As AnnClosedCurveObject
Dim value As Single

instance.Tension = value

value = instance.Tension
public virtual float Tension {get; set;}
 get_Tension();
set_Tension(value);
public:
virtual property float Tension {
   float get();
   void set (    float value);
}

Property Value

A value that specifies the amount that this AnnClosedCurveObject curve bends between control points.
Remarks

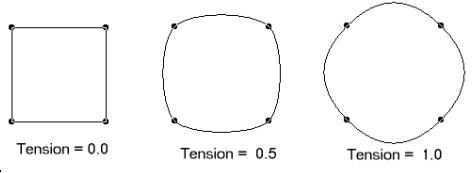

Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap:
Example
For an example, refer to AnnClosedCurveObject.
Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

AnnClosedCurveObject Class
AnnClosedCurveObject Members
