Tension Property (AnnCurveObject)

Gets or sets a value that specifies the amount that this AnnCurveObject curve bends between control points.

Syntax

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

public virtual float Tension {get; set;}

'Declaration

Public Overridable Property Tension As Single

'Usage

Dim instance As AnnCurveObject
Dim value As Single

instance.Tension = value

value = instance.Tension

public virtual float Tension {get; set;}

 get_Tension();
 set_Tension(value);

public:
virtual property float Tension {
   float get();
   void set (    float value);
}

Property Value

A value that specifies the amount that this AnnCurveObject curve bends between control points.

Remarks

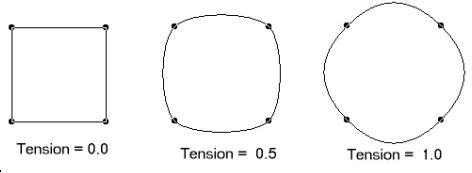

Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap:

Example

For an example, refer to AnnCurveObject.

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

AnnCurveObject Class
AnnCurveObject Members
