GetFirstElement Method








An item in the Data Set.
true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.
true to retrieve the first element, volatile or non-volatile; false to retrieve the first non-volatile element.
Returns the first item in the Data Set. .NET support WinRT support Silverlight support
Syntax
public DicomElement GetFirstElement(
   DicomElement element,
   bool tree,
   bool includeVolatile
)
'Declaration

Public Function GetFirstElement( _
   ByVal element As DicomElement, _
   ByVal tree As Boolean, _
   ByVal includeVolatile As Boolean _
) As DicomElement
'Usage

Dim instance As DicomDataSet
Dim element As DicomElement
Dim tree As Boolean
Dim includeVolatile As Boolean
Dim value As DicomElement

value = instance.GetFirstElement(element, tree, includeVolatile)
public DicomElement GetFirstElement(
   DicomElement element,
   bool tree,
   bool includeVolatile
)
ObjectiveC Syntax
 function Leadtools.Dicom.DicomDataSet.GetFirstElement(
   element ,
   tree ,
   includeVolatile
)
public:
DicomElement^ GetFirstElement(
   DicomElement^ element,
   bool tree,
   bool includeVolatile
)

Parameters

element
An item in the Data Set.
tree
true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.
includeVolatile
true to retrieve the first element, volatile or non-volatile; false to retrieve the first non-volatile element.

Return Value

The first item in the Data Set, or a null reference (Nothing in Visual Basic) if the Data Set is empty.
Remarks

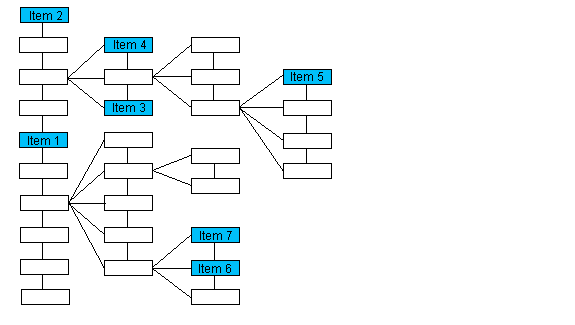

If the Data Set is evaluated as a tree structure, this method returns the first item on the same level as element with the same parent as element. Please note that the numbering of the items in this first illustration is arbitrary and does not imply order.

If the passed object points to: The method returns an object pointing to:
Item 1 Item 2
Item 3 Item 4
Item 5 Item 5
Item 6 Item 7
null Item 2

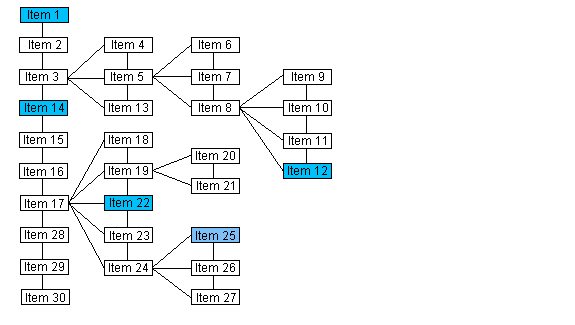

If the Data Set is evaluated as a list, the first item in the list is returned. Please note that the numbering of the items in this illustration does indicate the order of the items when the Data Set is evaluated as a list.

If the passed object points to: The method returns an object pointing to:
null Item 1
Item 12 Item 1
Item 14 Item 1
Item 22 Item 1
Item 25 Item 1

The following methods will also help you navigate the Data Set as either a tree or a list:

GetLastElement

GetPreviousElement

GetNextElement

If you evaluate the Data Set as a tree, you can also use the following methods to navigate the tree:

GetRootElement

GetParentElement

GetChildElement

A volatile element is an element that can be changed or destroyed in the process of inserting or setting an image. A non-volatile element is an element that must be changed manually; it is not changed or destroyed by inserting or setting an image.

For example, a grayscale image has elements DicomTag.SmallestImagePixelValue, DicomTag.LargestImagePixelValue, etc. If the image is changed to a color image, these elements disappear and the following elements appear: DicomTag.RedPaletteColorLookupTableDescriptor, etc. These are volatile elements since they are changed or destroyed when an image is changed or set.

To retrieve the first element that must be changed manually, i.e., is not volatile, set includeVolatile to false. To retrieve the first element, either volatile or non-volatile, set includeVolatile to true.

Example
For an example, refer to Load(String,DicomDataSetLoadFlags).
Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

DicomDataSet Class
DicomDataSet Members
GetLastElement Method
GetPreviousElement Method
GetNextElement Method
ModuleCount Property
GetRootElement Method
GetParentElement Method
GetChildElement Method
IsVolatileElement Method
