Delete Method (DicomIodTable)

public DicomIod Delete(
   DicomIod iod
)

'Declaration

Public Function Delete( _
   ByVal iod As DicomIod _
) As DicomIod

'Usage

Dim instance As DicomIodTable
Dim iod As DicomIod
Dim value As DicomIod

value = instance.Delete(iod)

public DicomIod Delete(
   DicomIod iod
)

ObjectiveC Syntax

 function Leadtools.Dicom.DicomIodTable.Delete(
   iod
)

public:
DicomIod^ Delete(
   DicomIod^ iod
)

Parameters

iod

The item to be deleted.

Return Value

• You can remove all items from the IOD Structure using Reset.
• Since the IOD Structure is stored internally as a tree, the deletion must be carried out as a tree.
• Since the IOD Structure is stored internally as a tree, the deletion must be carried out as a tree.
• Below are illustrations of these situations:

  For the sake of these illustrations, the order of siblings is top to bottom. A preceding sibling is drawn above the sibling it precedes, a following sibling is drawn below the sibling it follows.

  Please note that the numbering of the items of interest is arbitrary, and does not imply order.

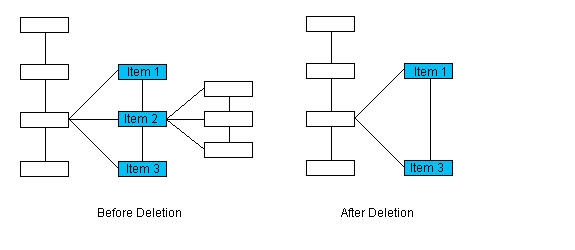

  In this illustration item 2 will be deleted. Since it has a following sibling, the returned class will be item 3.

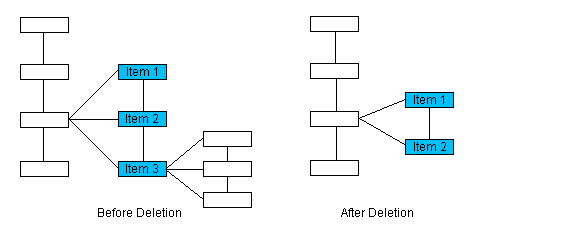

  In this illustration item 3 will be deleted. Since it does not have a following sibling, but does have a preceding sibling, the returned class will be item 2.

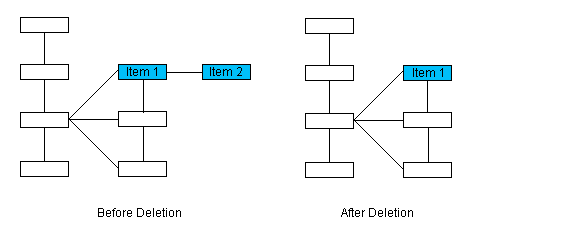

  In this illustration item 2 will be deleted. Since it is an only child, the returned class will be the parent, item 1.

  In this illustration item 1 will be deleted. Since it has no siblings and no parent, this method will return null.



Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
