InsertElement Method

public DicomElement InsertElement(
   DicomElement neighbor,
   bool child,
   long tag,
   DicomVRType vr,
   bool sequence,
   int index
)

'Declaration

Public Function InsertElement( _
   ByVal neighbor As DicomElement, _
   ByVal child As Boolean, _
   ByVal tag As Long, _
   ByVal vr As DicomVRType, _
   ByVal sequence As Boolean, _
   ByVal index As Integer _
) As DicomElement

'Usage

Dim instance As DicomDataSet
Dim neighbor As DicomElement
Dim child As Boolean
Dim tag As Long
Dim vr As DicomVRType
Dim sequence As Boolean
Dim index As Integer
Dim value As DicomElement

value = instance.InsertElement(neighbor, child, tag, vr, sequence, index)

public DicomElement InsertElement(
   DicomElement neighbor,
   bool child,
   long tag,
   DicomVRType vr,
   bool sequence,
   int index
)

ObjectiveC Syntax

 function Leadtools.Dicom.DicomDataSet.InsertElement(
   neighbor ,
   child ,
   tag ,
   vr ,
   sequence ,
   index
)

public:
DicomElement^ InsertElement(
   DicomElement^ neighbor,
   bool child,
   int64 tag,
   DicomVRType vr,
   bool sequence,
   int index
)

Parameters

neighbor

An item in the Data Set. The inserted item will be inserted as a neighbor to this item, or as a child, depending on the value of child.

child

true to insert the new item as the last child of neighbor; false to insert the new item as the last sibling of neighbor.

tag

Tag value for the inserted element. For a list of default values, refer to Data Element Tag Values.

vr

Value representation code that indicates the type of value stored in the data element.

sequence

true if the new item is a sequence; otherwise, false.

index

The index at which the data element should be inserted in a sequence. The index is zero-based, so if you want to insert a data element as the first item in the sequence, set this to 0. The value -1 indicates to add the data element to the end of the sequence.

A sequence may consist of one or more items. This parameter lets you insert a data element as any item within the sequence, not just at the end. In addition, it lets you insert multiple data elements within a sequence.

If neighbor points to the parent of a sequence and child is true, the index will pertain to the children of neighbor. If neighbor points to a member of a sequence and child is false, the index pertains to the siblings of neighbor.

Return Value

For the sake of these illustrations, the order of siblings is top to bottom. Therefore, since added items become the last sibling or the last child, these are drawn at the bottom of the appropriate group of items.

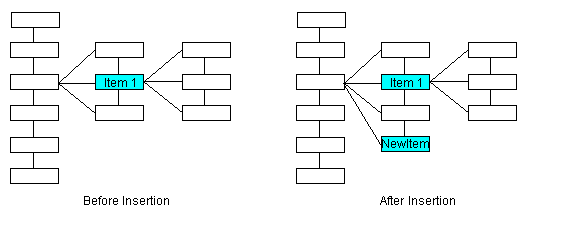

In this illustration, neighbor points to Item 1 and child is false. The new item is added as the last sibling of Item 1.

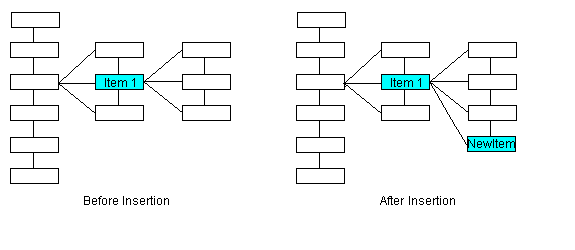

In this illustration, neighbor points to Item 1 and child is true. The new item is added as the last child of Item 1.

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
