FillMode Property

Gets or sets a value that indicates how to handle complex crossing lines.

Syntax

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

public LeadFillMode FillMode {get; set;}

'Declaration

Public Property FillMode As LeadFillMode

'Usage

Dim instance As RasterCurve
Dim value As LeadFillMode

instance.FillMode = value

value = instance.FillMode

public LeadFillMode FillMode {get; set;}

 get_FillMode();
 set_FillMode(value);

public:
property LeadFillMode FillMode {
   LeadFillMode get();
   void set (    LeadFillMode value);
}

Property Value

A LeadFillMode enumeration value that indicates how to handle complex crossing lines.

Remarks

Value	Meaning
LeadFillMode.Winding	All pixels that are inside the resulting exterior lines are in the region.
LeadFillMode.Alternate	The region includes the area between odd-numbered and even-numbered polygon sides on each scan line.

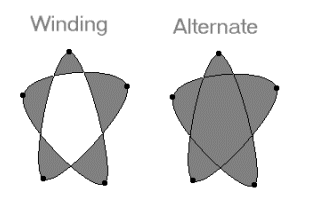

Curve Fill Mode

Example

For an example, refer to RasterCurve.

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

RasterCurve Class
RasterCurve Members
