Paint(RasterImage,Graphics,LeadRect,LeadRect,RasterPaintProperties) Method

Displays this Leadtools.RasterImage in the given System.Drawing.Graphics object.

Syntax

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

public static void Paint(
   RasterImage image,
   Graphics graphics,
   LeadRect srcRect,
   LeadRect destRect,
   RasterPaintProperties properties
)

'Declaration

Public Overloads Shared Sub Paint( _
   ByVal image As RasterImage, _
   ByVal graphics As Graphics, _
   ByVal srcRect As LeadRect, _
   ByVal destRect As LeadRect, _
   ByVal properties As RasterPaintProperties _
)

'Usage

Dim image As RasterImage
Dim graphics As Graphics
Dim srcRect As LeadRect
Dim destRect As LeadRect
Dim properties As RasterPaintProperties

RasterImagePainter.Paint(image, graphics, srcRect, destRect, properties)

public static void Paint(
   RasterImage image,
   Graphics graphics,
   LeadRect srcRect,
   LeadRect destRect,
   RasterPaintProperties properties
)

 function Leadtools.Drawing.RasterImagePainter.Paint(RasterImage,Graphics,LeadRect,LeadRect,RasterPaintProperties)(
   image ,
   graphics ,
   srcRect ,
   destRect ,
   properties
)

public:
static void Paint(
   RasterImage^ image,
   Graphics^ graphics,
   LeadRect srcRect,
   LeadRect destRect,
   RasterPaintProperties properties
)

Parameters


The source image.

graphics

The destination System.Drawing.Graphics object where the image will be displayed.

srcRect

A Leadtools.LeadRect object that specifies the part of the image to use as the display source.

The coordinates of the srcRect are relative to the image. You can pass Rectangle.Empty to use the default, which matches the image.

destRect

Leadtools.LeadRect

A Leadtools.LeadRect object that determines how the image is scaled and positioned in graphics.

The coordinates of destRect are relative to the graphics object. There is no default for this parameter. You must specify the Leadtools.LeadRect values.

properties

Options for the display.

Remarks

If the destination System.Drawing.Graphics object has fewer colors than the image, this method dithers the output to that display surface without affecting the actual image data.

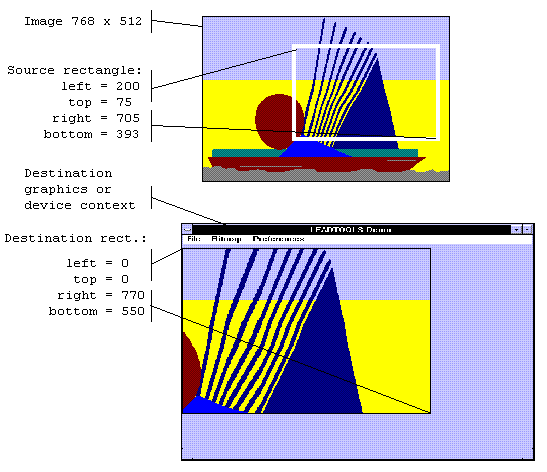

This method lets you specify a source rectangle (with coordinates relative to the image) and a destination rectangle (with coordinates relative to the destination System.Drawing.Graphics object). Scaling of the displayed image depends on the relationship between these two rectangles, as shown in the following illustration:

Note: These illustrations are for an image with a RasterViewPerspective.TopLeft view perspective. For an explanation of image coordinates and view perspectives, refer to Accounting for View Perspective. If the image is not in RasterViewPerspective.TopLeft view perspective, refer to Changing Image Coordinates.

In addition, you can specify a clipping area within either rectangle to limit the area to be painted. For the destination rectangle, a clipping area is commonly specified to repaint part of the image that was temporarily covered up. For a source rectangle, you can use a clipping area to update the display when only part of the image in the source rectangle has changed.

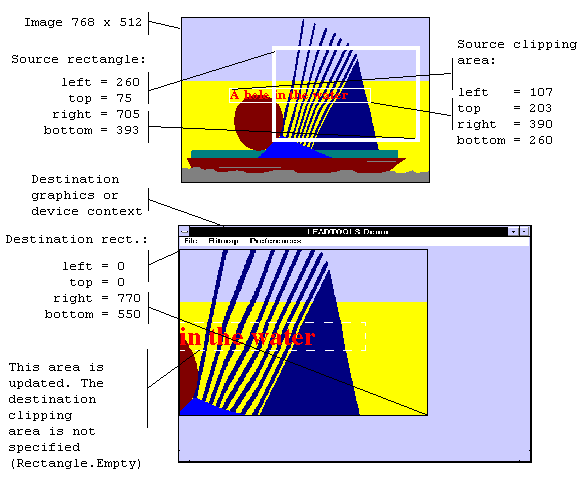

The following illustration shows how specifying a source clipping area affects the display. Text has been added to the source image (using the image as a display surface), and the source clipping area specifies the area to be repainted.

You can specify the various rectangles in any way that meets your needs. Coordinates can have negative values and they can extend beyond the bounds of the image or destination System.Drawing.Graphics object. In fact, it is common for the display rectangle to be bigger than the destination System.Drawing.Graphics dimension, where scroll bars are used to see different parts of the image.

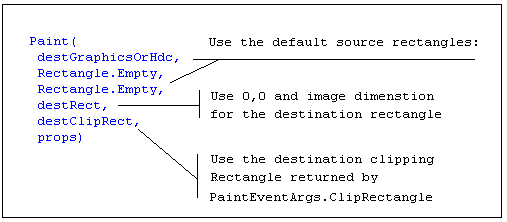

In simple cases, you can use this method as follows:

For more information refer to RasterImage and GDI/GDI+.

For more information, refer to Changing Image Coordinates.

For more information, refer to Handling Palette Changes.

For more information, refer to Flags for the PaintDisplayMode Property.

For more information, refer to Using The PaintEngine Property.

Example

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Public Sub PaintExample()
      Dim f As New PaintForm()
      f.ShowDialog()
   End Sub

   Class PaintForm
      Inherits Form
      Private image As RasterImage
      Private props As RasterPaintProperties

      Public Sub New()
         ' Load the image
         Dim codecs As New RasterCodecs()

         Dim srcFileName As String = Path.Combine(LEAD_VARS.ImagesDir, "Ocr1.tif")
         image = codecs.Load(srcFileName)

         Text = "Normal - doubleclick to change."
         props = RasterPaintProperties.Default
         props.PaintDisplayMode = RasterPaintDisplayModeFlags.None
      End Sub

      Protected Overrides Sub Dispose(ByVal disposing As Boolean)
         ' Clean up
         If disposing Then
            image.Dispose()
         End If

         MyBase.Dispose(disposing)
      End Sub

      Protected Overrides Sub OnDoubleClick(ByVal e As EventArgs)
         If (props.PaintDisplayMode And RasterPaintDisplayModeFlags.ScaleToGray) = RasterPaintDisplayModeFlags.ScaleToGray Then
            Text = "Normal - doubleclick to change."
            props.PaintDisplayMode = props.PaintDisplayMode And Not RasterPaintDisplayModeFlags.ScaleToGray
         Else
            Text = "ScaleToGray - doubleclick to change."
            props.PaintDisplayMode = props.PaintDisplayMode Or RasterPaintDisplayModeFlags.ScaleToGray
         End If

         Invalidate()

         MyBase.OnDoubleClick(e)
      End Sub

      Protected Overrides Sub OnPaint(ByVal e As PaintEventArgs)
         ' Draw the image fit and center on this form
         Dim destRect As LeadRect = LeadRect.FromLTRB(ClientRectangle.Left, ClientRectangle.Top, ClientRectangle.Right, ClientRectangle.Bottom)
         destRect = RasterImage.CalculatePaintModeRectangle( _
            image.ImageWidth, _
            image.ImageHeight, _
            destRect, _
            RasterPaintSizeMode.Fit, _
            RasterPaintAlignMode.Center, _
            RasterPaintAlignMode.Center)
         RasterImagePainter.Paint(image, e.Graphics, LeadRect.Empty, destRect, props)

         MyBase.OnPaint(e)
      End Sub
   End Class

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class

public void PaintExample()
   {
      PaintForm f = new PaintForm();
      f.ShowDialog();
   }

   class PaintForm : Form
   {
      private RasterImage image;
      private RasterPaintProperties props;

      public PaintForm()
      {
         // Load the image
         RasterCodecs codecs = new RasterCodecs();

         string srcFileName = Path.Combine(LEAD_VARS.ImagesDir, "Ocr1.tif");
         image = codecs.Load(srcFileName);

         Text = "Normal - doubleclick to change.";
         props = RasterPaintProperties.Default;
         props.PaintDisplayMode = RasterPaintDisplayModeFlags.None;
      }

      protected override void Dispose(bool disposing)
      {
         // Clean up
         if(disposing)
         {
            image.Dispose();
         }

         base.Dispose(disposing);
      }

      protected override void OnDoubleClick(EventArgs e)
      {
         if((props.PaintDisplayMode & RasterPaintDisplayModeFlags.ScaleToGray) == RasterPaintDisplayModeFlags.ScaleToGray)
         {
            Text = "Normal - doubleclick to change.";
            props.PaintDisplayMode &= ~RasterPaintDisplayModeFlags.ScaleToGray;
         }
         else
         {
            Text = "ScaleToGray - doubleclick to change.";
            props.PaintDisplayMode |= RasterPaintDisplayModeFlags.ScaleToGray;
         }

         Invalidate();

         base.OnDoubleClick(e);
      }

      protected override void OnPaint(PaintEventArgs e)
      {
         // Draw the image fit and center on this form
         LeadRect destRect = LeadRect.FromLTRB(ClientRectangle.Left, ClientRectangle.Top, ClientRectangle.Right, ClientRectangle.Bottom);
         destRect = RasterImage.CalculatePaintModeRectangle(
            image.ImageWidth,
            image.ImageHeight,
            destRect,
            RasterPaintSizeMode.Fit,
            RasterPaintAlignMode.Center,
            RasterPaintAlignMode.Center);
         RasterImagePainter.Paint(image, e.Graphics, LeadRect.Empty, destRect, props);

         base.OnPaint(e);
      }
   }

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}
