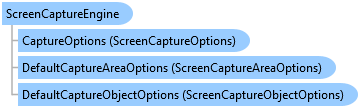

ScreenCaptureEngine Class

public class ScreenCaptureEngine : System.IDisposable

public void ScreenCaptureEngineExample()
   {
      // Startup the ScreenCapture
      ScreenCaptureEngine.Startup();

      // Define a ScreenCaptureEngine class object
      ScreenCaptureEngine scEngine = new ScreenCaptureEngine();

      // Define an EventHandler for CaptureInformation
      scEngine.CaptureInformation += new EventHandler<ScreenCaptureInformationEventArgs>(scEngine_CaptureInformation);

      // Define the Help Callback that will run whenever the Help button is pressed on the dialogs
      ScreenCaptureHelpCallback helpCallback = new ScreenCaptureHelpCallback(HelpCallback);

      // Define ScreenCaptureAreaOptions and fill it using dialog
      ScreenCaptureAreaOptions scAreaOptions = ScreenCaptureAreaOptions.Empty;
      // Get the default options
      scAreaOptions = ScreenCaptureEngine.DefaultCaptureAreaOptions;
      // Open the dialog allowing the user to change the values
      // NOTE: To fill the structure manually, you can write:
      // Cursor drawCursor = Cursors.Cross;
      // scAreaOptions.AreaType = ScreenCaptureAreaType.Rectangle;
      // scAreaOptions.DrawCursor = drawCursor;
      // scAreaOptions.DrawLineColor = Color.Red;
      // scAreaOptions.DrawLineStyle = ScreenCaptureAreaLineStyle.Solid;
      // scAreaOptions.EllipseHeight = 0;
      // scAreaOptions.EllipseWidth = 0;
      // scAreaOptions.FillBackgroundColor = Color.Black;
      // scAreaOptions.FillForegroundColor = Color.White;
      // scAreaOptions.FillPattern = ScreenCaptureAreaFillPattern.Solid;
      // scAreaOptions.Flags = ScreenCaptureAreaFlags.ShowInfoWindow;
      // scAreaOptions.InfoWindowBounds = new Rectangle(ScreenCaptureAreaOptions.LeftInfoWindowPosition, ScreenCaptureAreaOptions.TopInfoWindowPosition, ScreenCaptureAreaOptions.MediumInfoWindowSize, ScreenCaptureAreaOptions.MediumInfoWindowSize);
      // scAreaOptions.TextBackgroundColor = Color.White;
      // scAreaOptions.TextForegroundColor = Color.Black;
      // scAreaOptions.Zoom = ScreenCaptureAreaZoom.Normal;
      scEngine.ShowCaptureAreaOptionsDialog(null, ScreenCaptureDialogFlags.CaptureAreaOptionsContextHelp, scAreaOptions, true, helpCallback);

      // Define ScreenCaptureOptions and fill it using dialog
      ScreenCaptureOptions scOptions = ScreenCaptureOptions.Empty;
      // Set the ScreenCaptureHotKeyCallback, so that it gets called if the hotkey is set in the dialog
      ScreenCaptureHotkeyCallback hotkeyCallback = new ScreenCaptureHotkeyCallback(HotKeyCallback);
      ScreenCaptureEngine.SetCaptureHotkeyCallback(hotkeyCallback);
      // Open the dialog allowing the user to change the values
      // NOTE: To fill the structure manually, you can write:
      // scOptions.CancelKey = Keys.Escape;
      // scOptions.Count = 1;
      // scOptions.Cursor = Cursors.Arrow;
      // scOptions.Delay = 0;
      // scOptions.Hotkey = Keys.F11;
      // scOptions.Interval = 0;
      // scOptions.OptimizedHotkey = true;
      // scOptions.StatusCursor = Cursors.WaitCursor;
      scEngine.ShowCaptureOptionsDialog(null, ScreenCaptureDialogFlags.SetCaptureOptionsContextHelp, scOptions, helpCallback);
      // Set the Engine's ScreenCaptureOptions
      scEngine.CaptureOptions = scOptions;

      // Define ScreenCaptureObjectOptions and fill it using dialog
      ScreenCaptureObjectOptions scObjectOptions = ScreenCaptureObjectOptions.Empty;
      // Get the default Options
      scObjectOptions = ScreenCaptureEngine.DefaultCaptureObjectOptions;
      // Open the dialog allowing the user to change the values
      // NOTE: To fill the structure manually, you can write:
      // scObjectOptions.BorderWidth = 2;
      // scObjectOptions.EnableKeyboard = true;
      // scObjectOptions.Invert = false;
      // scObjectOptions.SelectCursor = Cursors.Arrow;
      scEngine.ShowCaptureObjectOptionsDialog(null, ScreenCaptureDialogFlags.CaptureObjectOptionsContextHelp, scObjectOptions, true, helpCallback);

      // Define ScreenCaptureInformation class object
      ScreenCaptureInformation scInformation = null;

      // NOTE: After preparing the structures and classes,
      // in this place you can insert any Capture method, such as:
      // CaptureWindow, CaptureActiveWindow, CaptureActiveClient, CaptureWallpaper,
      // CaptureFullScreen, CaptureMenuUnderCursor, CaptureWindowUnderCursor,
      // CaptureSelectedObject, CaptureArea, CaptureMouseCursor

      // We will Capture an Area of the screen
      RasterImage image = scEngine.CaptureArea(scAreaOptions, scInformation);

      // To get the number of resources in a EXE file
      int iconsCount = scEngine.GetResourcesCount(Path.Combine(LEAD_VARS.ImagesDir, "ExeWithResources.exe"), ScreenCaptureResourceType.Icon);

      // Finally, if the Capture is still active, then Stop it
      if (scEngine.IsCaptureActive)
         scEngine.StopCapture();

      // clean up
      image.Dispose();

      // Shutdown the ScreenCapture
      ScreenCaptureEngine.Shutdown();
   }

   bool HotKeyCallback(Keys key)
   {
      // Here you can do anything with the pressed key
      // we will just show a message box
      MessageBox.Show("You pressed the " + key.ToString() + "character.");

      return true;
   }

   void HelpCallback(ScreenCaptureHelpType helpType, ScreenCaptureControlId controlId)
   {
      // Show a MessageBox mentioning the name of the dialog that called the help,
      // and which control ID was requested.
      switch(helpType)
      {
         case ScreenCaptureHelpType.CaptureAreaOptions:
            MessageBox.Show("Capture Area Options Dialog Help Button\n" +
               "Control Id: " + controlId.ToString() + ".");
            break;
         case ScreenCaptureHelpType.CaptureFromExe:
            MessageBox.Show("Capture From EXE Dialog Help Button\n" +
               "Control Id: " + controlId.ToString() + ".");
            break;
         case ScreenCaptureHelpType.CaptureObjectOptions:
            MessageBox.Show("Capture Object Options Dialog Help Button\n" +
               "Control Id: " + controlId.ToString() + ".");
            break;
         case ScreenCaptureHelpType.SetCaptureOptions:
            MessageBox.Show("Capture Options Dialog Help Button\n" +
               "Control Id: " + controlId.ToString() + ".");
            break;
         default:
            // will never reach here
            break;
      }
   }

   void scEngine_CaptureInformation(object sender, ScreenCaptureInformationEventArgs e)
   {
      // Make sure that the image was captured successfully
      Debug.Assert(e.Image != null);

      // Define codecs class object to save the image
      RasterCodecs codecs = new RasterCodecs();
      codecs.ThrowExceptionsOnInvalidImages = true;

      // Save the resulted Image
      codecs.Save(e.Image,Path.Combine(LEAD_VARS.ImagesDir,"Out_CapturedImage.bmp"), RasterImageFormat.Bmp, 24);


      // NOTE: e.Information is a ScreenCaptureInformation structure filled with information
      // about the captured image, this information can be used here
      // Display a MessageBox with the bounds of the capture area
      MessageBox.Show("Captured Area Bounds:\n" +
         "Top:" + e.Information.Area.Top.ToString() + "\n" +
         "Left:" + e.Information.Area.Left.ToString() + "\n" +
         "Right:" + e.Information.Area.Right.ToString() + "\n" +
         "Bottom:" + e.Information.Area.Bottom.ToString());

      // everything worked fine
      e.Cancel = false;
   }

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}
