Illustration of the Polygon Fill Mode for Annotations

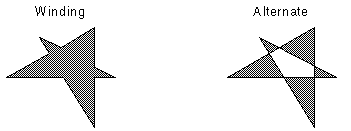

Note: This topic is for Document/Medical only. The following polygon annotation objects illustrate the available polygon fill modes:

Value	Meaning
Winding	The area inside the resulting exterior lines is filled.
Alternate	The filled area includes the area between odd-numbered and even-numbered polygon sides on each scan line.
