LAnnContainer::RestrictCursor

#include "ltwrappr.h"

virtual L_INT LAnnContainer::RestrictCursor(lpRect, pPoint, prcOldClip, bRestrictClient)

LPRECT lpRect;	/* pointer to a RECT structure */
LPPOINT pPoint;	/* pointer to a POINT structure */
LPRECT prcOldClip;	/* pointer a RECT structure that contains the previous clip rectangle */
L_BOOL bRestrictClient;	/* flag that specifies whether the cursor is restricted to the client window */

Restricts the mouse cursor in conjunction with annotation objects.

Parameter	Description
lpRect	Pointer to a RECT structure that contains the rectangle within which the cursor is restricted.
pPoint	Pointer to a POINT structure that contains the point around which the lpRect rectangle is centered.
prcOldClip	Pointer to a RECT structure that contains the previous clip rectangle.
bRestrictClient	Flag that specifies whether the cursor is restricted to the client window. Possible values are:
	Value	Meaning
	TRUE	Restrict the cursor to the client window.
	FALSE	Do not restrict the cursor to the client window.

Returns

SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

This function is used to restrict the mouse cursor. It should be used when creating custom annotation objects.

Calling this function always restricts the mouse cursor to the annotation container. However, depending on the arguments passed, the mouse cursor can be restricted further .

This function can be used in the following ways:

To restrict the cursor to the bounds of the container, pass NULL for lpRect and NULL for pPoint.

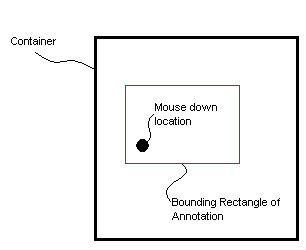

To restrict the cursor to a box around pPoint (and the container), pass pPoint and lpRect. This is used to restrict movement when dragging an annotation. The pPoint parameter specifies the location at which the user begins the dragging operation by pressing the mouse button. The lpRect parameter specifies the bounding box of the annotation. Calling this function when the mouse button is pressed restricts movement of the annotation so that no part of the annotation can go outside the container. In the diagram below, the red rectangle is restricted so it cannot move outside the container.

$image\AnnRestrict.gif$

To restrict the cursor to a box (not centered around a point), pass lpRect and NULL for pPoint.
To do the above, and also restrict to the client area, set bRestrictClient to TRUE.

Required DLLs and Libraries

LTANN

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Win32, x64.

See Also

Functions:	Class Members, LAnnotation::SetAutoSnapCursor, LAnnotation::GetAutoSnapCursor
Topics:	Annotation Functions Realizing to a Bitmap
	Annotation Functions: Implementing Custom Annotations
	Annotation Functions: Creating Custom Annotations
	Displaying and Manipulating Annotation Objects

Example

// Example for LAnnContainer::Convert, LAnnContainer::RestrictCursor

// This example restricts the cursor to 10 pixels on either side

// of the bounding box of the annotation object. For example,

// if the object is a rectangle, the mouse cursor will be restricted

// to an area that is 10 pixels larger than the rectangle.

L_INT LAnnContainer_RestrictCursorExample(LAnnContainer *pLContainer)
{
   L_INT nRet;
   L_UINT uType;
   ANNRECT arcBounds;
   RECT rcBounds;
   HANNOBJECT hContainer;
   RECT rcClipOld;
   uType = pLContainer->GetType();
   if ((uType != ANNOBJECT_AUTOMATION) && (uType != ANNOBJECT_CONTAINER))
   {
      nRet = pLContainer->GetTopContainer(&hContainer);
      if(nRet != SUCCESS)
         return nRet;

      nRet = pLContainer->GetRect(&arcBounds, NULL);
      if(nRet != SUCCESS)
         return nRet;
      nRet = pLContainer->Convert((LPPOINT)&rcBounds, (pANNPOINT)&arcBounds, 2, ANNCONVERT_TO_CLIENT);
      if(nRet != SUCCESS)
         return nRet;
      rcBounds.left -= 10;
      rcBounds.top -= 10;
      rcBounds.right += 10;
      rcBounds.bottom += 10;
      nRet = pLContainer->RestrictCursor(&rcBounds,  NULL, &rcClipOld, FALSE);
      if(nRet != SUCCESS)
         return nRet;
      // When done with restricting cursor, call the line below
      // ClipCursor(&rcClipOld);
   }
   else
      return FAILURE;
   return SUCCESS;
}
