CMYK - 3D Subtractive Model

Show in webframe

In the CMYK model:

C stands for Cyan.
M stands for Magenta.
Y stands for Yellow.
K stands for Black.

Printing processes typically use Cyan, Magenta, Yellow, and Black ink on white paper to reproduce colors. Unlike RGB color, which is ©additive© because light is added by the amount of color in each of the components, CMYK is ©subtractive© because light is subtracted from the bright white background whenever color is applied. This means that higher values for component colors create darker overall colors.

In theory, 100% of each of Cyan, Magenta, and Yellow should produce black, but in reality a pure black is not usually obtained. This is compensated for by introducing the K (black) component.

CMYK, like RGB, is a device dependent color model.

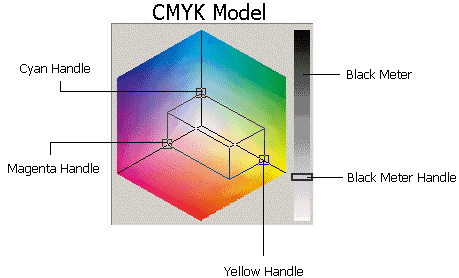

$image\Model-CMYK.gif$

Functions:	L_DlgColor, L_DlgCustomizePalette.
Topics:	HSB-Brightness Based Model
	HSB-Hue Based Model
	HSB-Wheel Based Model
	RGB-3D Additive Model
	Lab-Device Independent Model
	CMY-3D Subtractive Model
