(Leadtools.Annotations.Core)

Tension Property

Show in webframe





Gets or sets a value that specifies the amount that this AnnCurveObject curve bends between control points.
Syntax
public double Tension {get; set;}
Public Property Tension As Double
public double Tension {get; set;}
@property (nonatomic) double tension;
public double getTension()
public void setTension(double tension)


get_Tension();
set_Tension(value);
Object.defineProperty('Tension');

Property Value

A value that specifies the amount that this AnnCurveObject curve bends between control points.
Remarks

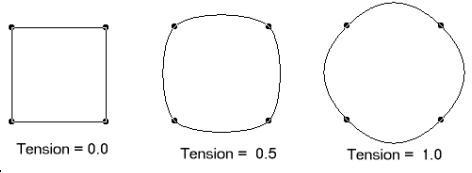

Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap:

Requirements

Target Platforms

See Also

Reference

AnnCurveObject Class
AnnCurveObject Members
