Tension Property (AnnCurveObject)

Gets or sets a value that specifies the amount that this AnnCurveObject curve bends between control points.

Syntax

Visual Basic
C#
Objective-C
Java
C++

public virtual float Tension {get; set;}

'Declaration

Public Overridable Property Tension As Single

'Usage

Dim instance As AnnCurveObject
Dim value As Single

instance.Tension = value

value = instance.Tension

public:
virtual property float Tension {
   float get();
   void set (    float value);
}

Property Value

A value that specifies the amount that this AnnCurveObject curve bends between control points.

Remarks

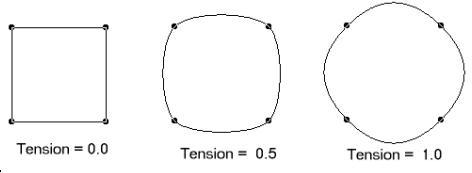

Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap: Tension

Example

For an example, refer to AnnCurveObject.

Requirements

Target Platforms

Reference

AnnCurveObject Class
AnnCurveObject Members
