MaximumWallPercent Property

Gets or sets the maximum number of wall slices (expressed as a percent of the total length of the line) that are allowed.

Syntax

Visual Basic
C#
Objective-C
Java
C++

[DataMemberAttribute(Name="MaximumWallPercent", IsRequired=true)]
public int MaximumWallPercent {get; set;}

'Declaration

<DataMemberAttribute(Name="MaximumWallPercent", IsRequired=True)>
Public Property MaximumWallPercent As Integer

'Usage

Dim instance As LineRemoveRequest
Dim value As Integer

instance.MaximumWallPercent = value

value = instance.MaximumWallPercent

[DataMemberAttribute(Name="MaximumWallPercent", IsRequired=true)]
public:
property int MaximumWallPercent {
   int get();
   void set (    int value);
}

Property Value

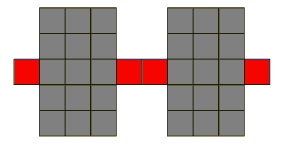

The maximum number of wall slices (expressed as a percent of the total length of the line) that are allowed. A line consists of wall slices and non-wall slices (see description of Wall). This property specifies the maximum number of wall slices (expressed as a percent of the total length of the line) that are allowed. Lines that have a wall percent that is larger than maximumWallPercent will not be removed. For example, consider the line below that is 10 pixels in length, and 1 pixel in height in some places, and five pixels in height in other places.

Setting MinimumLineLength to 10 pixels and Wall to four pixels will identify the line below as a candidate for removal. Note that the wall percent for this line is 60 percent (because six of ten line slices are walls). If MaximumWallPercent is 80 then the line will be removed (actually, the pixels marked as red will be removed). If MaximumWallPercent is 30, then the line will not be removed.

Requirements

Target Platforms

Reference

LineRemoveRequest Class
LineRemoveRequest Members
