Loading and Saving Images with the LEADTOOLS RasterImageViewer

Show in webframe

With the LEADTOOLS WPF Module and Raster Imaging SDK, you can take the following steps to create and run a program in Microsoft Expression Blend that loads and saves an image using the LEADTOOLS RasterImageViewer.

  1. Create a Microsoft Expression Blend project and set it up to use LEADTOOLS WPF controls. Make your project Name and Window Title "RasterImageViewer."
  2. From the Asset Library , under Custom Controls select RasterImageViewer.
  3. Add elements to the project to create a window with some buttons, text box fields, a label, and a raster image viewer as described below:

    Objects Required
    Type Name Purpose
    Window Window Main window
    Grid LayoutRoot Grid acts as the container for the objects to be added.
    Canvas _canvas Sets objects as fixed points in the LayoutRoot.
    Label _label Displays a description of the window.
    RasterImageViewer _viewer LEADTOOLS object to view raster images.
    Button _load Triggers loading an image event.
    Button _save Triggers saving a loaded image event.
    TextBox _savePath Absolute path where image is saved to.
    TextBox _loadPath Absolute path where the image is loaded from.

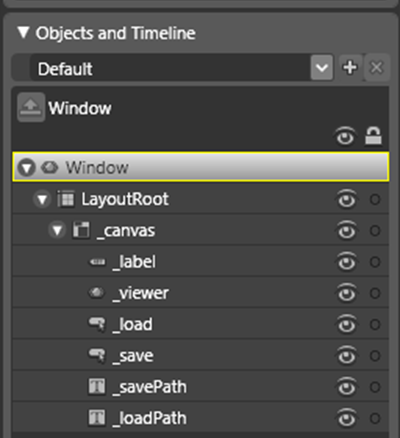

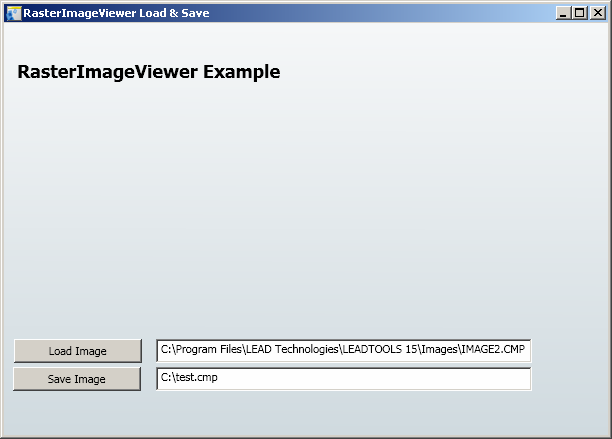

    Expression Blend: Objects and Timeline RasterImageViewer UI Layout Example
  4. Create the trigger event for loading the image.
    • Double click on _load (a yellow border will surround the element similar to the Window object in picture above).

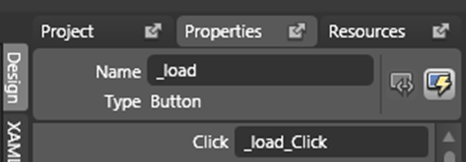

    • Choose the Properties tab located on the right side of the Expression Blend window. Click on the Events (yellow lightning icon) button. Notice the Click event is at the top of the list.
    • In the text field type up a descriptive name of the method to handle the click event: "_load_Click". Double-click the field to save and exit.
    • Visual Studio will start and will add a method to the C# code used behind the interface.
    • The method for _load_Click will be created. Complete it as follows:

      [C# Code]

      The method for _load_Click will be created. Complete it as follows:

      [C# Code]

      private void _load_Click(object sender, RoutedEventArgs e) { using (Leadtools.Codecs.RasterCodecs codecs = new Leadtools.Codecs.RasterCodecs()) { _viewer.Image = codecs.Load(_loadPath.Text, bitsPerPixel, Leadtools.Codecs.CodecsLoadByteOrder.Bgr, pageNumber, pageNumber); } }
  5. Create the trigger event for saving the image.
    • Double click on _save to select it.
    • Choose the Properties tab located on the right side of the Expression Blend window. Click on the Events (yellow lightning icon) button. Notice the Click event is at the top of the list.
    • In the text field type up a descriptive name of the method to handle the click event: "_save_Click".
    • Double-click the field to save and exit. Visual Studio will start and will add an empty method to the C# code used behind the interface. Complete the method as follows:
      [C# Code]
      Double-click the field to save and exit. Visual Studio will start and will add an empty method to the C# code used behind the interface. Complete the method as follows:
      [C# Code] private void _save_Click(object sender, RoutedEventArgs e) { using (Leadtools.Codecs.RasterCodecs codecs = new Leadtools.Codecs.RasterCodecs()) { codecs.Save(_viewer.Image, _savePath.Text, Leadtools.RasterImageFormat.Cmp, bitsPerPixel); } }
    • Add the variables used in the methods, at the top of the class Window1.xaml.cs. Refer to Compression Quality Factors and RasterImageViewer.Save File Constant(s) for acceptable values.

      [C# Code]

      Add the variables used in the methods, at the top of the class Window1.xaml.cs. Refer to Compression Quality Factors and RasterImageViewer.Save File Constant(s) for acceptable values.

      [C# Code]
      private int bitsPerPixel = 0; private int qualityFactor = 2; private int pageNumber = 1;
  6. Press F5 to build your application. This will take a few seconds.

Example

[Window1.xaml]


With the LEADTOOLS WPF Module and Raster Imaging SDK, you can take the following steps to create and run a program in Microsoft Expression Blend that loads and saves an image using the LEADTOOLS RasterImageViewer.
  1. Create a Microsoft Expression Blend project and set it up to use LEADTOOLS WPF controls. Make your project Name and Window Title "RasterImageViewer."
  2. From the Asset Library , under Custom Controls select RasterImageViewer.
  3. Add elements to the project to create a window with some buttons, text box fields, a label, and a raster image viewer as described below:

    Objects Required
    Type Name Purpose
    Window Window Main window
    Grid LayoutRoot Grid acts as the container for the objects to be added.
    Canvas _canvas Sets objects as fixed points in the LayoutRoot.
    Label _label Displays a description of the window.
    RasterImageViewer _viewer LEADTOOLS object to view raster images.
    Button _load Triggers loading an image event.
    Button _save Triggers saving a loaded image event.
    TextBox _savePath Absolute path where image is saved to.
    TextBox _loadPath Absolute path where the image is loaded from.


    Expression Blend: Objects and Timeline RasterImageViewer UI Layout Example
  4. Create the trigger event for loading the image.
    • Double click on _load (a yellow border will surround the element similar to the Window object in picture above).
    • Choose the Properties tab located on the right side of the Expression Blend window. Click on the Events (yellow lightning icon) button. Notice the Click event is at the top of the list.
    • In the text field type up a descriptive name of the method to handle the click event: "_load_Click". Double-click the field to save and exit.
    • Visual Studio will start and will add a method to the C# code used behind the interface.
    • The method for _load_Click will be created. Complete it as follows:

      [C# Code]

      The method for _load_Click will be created. Complete it as follows:

      [C# Code]

      private void _load_Click(object sender, RoutedEventArgs e) { using (Leadtools.Codecs.RasterCodecs codecs = new Leadtools.Codecs.RasterCodecs()) { _viewer.Image = codecs.Load(_loadPath.Text, bitsPerPixel, Leadtools.Codecs.CodecsLoadByteOrder.Bgr, pageNumber, pageNumber); } }
  5. Create the trigger event for saving the image.
    • Double click on _save to select it.
    • Choose the Properties tab located on the right side of the Expression Blend window. Click on the Events (yellow lightning icon) button. Notice the Click event is at the top of the list.
    • In the text field type up a descriptive name of the method to handle the click event: "_save_Click".
    • Double-click the field to save and exit. Visual Studio will start and will add an empty method to the C# code used behind the interface. Complete the method as follows:
      [C# Code]
      Double-click the field to save and exit. Visual Studio will start and will add an empty method to the C# code used behind the interface. Complete the method as follows:
      [C# Code] private void _save_Click(object sender, RoutedEventArgs e) { using (Leadtools.Codecs.RasterCodecs codecs = new Leadtools.Codecs.RasterCodecs()) { codecs.Save(_viewer.Image, _savePath.Text, Leadtools.RasterImageFormat.Cmp, bitsPerPixel); } }
    • Add the variables used in the methods, at the top of the class Window1.xaml.cs. Refer to Compression Quality Factors and RasterImageViewer.Save File Constant(s) for acceptable values.

      [C# Code]

      Add the variables used in the methods, at the top of the class Window1.xaml.cs. Refer to Compression Quality Factors and RasterImageViewer.Save File Constant(s) for acceptable values.

      [C# Code]
      private int bitsPerPixel = 0; private int qualityFactor = 2; private int pageNumber = 1;
  6. Press F5 to build your application. This will take a few seconds.

Example

[Window1.xaml]


            <Window
                xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                xmlns:Leadtools_Windows_Controls="clr-namespace:Leadtools.Windows.Controls;assembly=Leadtools.Windows.Controls"
                x:Class="RasterImageViewer.Window1"
                x:Name="Window"
                Title="RasterImageViewer"
                Width="612" Height="439" Background="#FFFBFBFB" BorderBrush="{x:Null}">
                    <Grid x:Name="LayoutRoot">
                    <Grid.Background>
                        <LinearGradientBrush EndPoint="0.498,1.198" StartPoint="0.502,-0.198">
                            <GradientStop Color="#FFFDFDFD" Offset="0"/>
                            <GradientStop Color="#FFC8D4DA" Offset="1"/>
                        </LinearGradientBrush>
                    </Grid.Background>
                    <Canvas Margin="8,8,8,12" x:Name="_canvas">
                        <Label x:Name="_label" Width="408" Height="32" Content="RasterImageViewer Example" FontSize="18" FontStretch="SemiExpanded" FontStyle="Normal" FontWeight="SemiBold" Canvas.Top="24"/>
                            <Leadtools_Windows_Controls:RasterImageViewer Width="360" Height="224" x:Name="_viewer" Canvas.Left="48" Canvas.Top="72" ">
                                <Leadtools_Windows_Controls:RasterImageViewer.BorderBrush>
                                    <LinearGradientBrush EndPoint="1,0.5" StartPoint="0,0.5">
                                        <GradientStop Color="#FF000000" Offset="0"/>
                                        <GradientStop Color="#FF100000" Offset="1"/>
                                    </LinearGradientBrush>
                                </Leadtools_Windows_Controls:RasterImageViewer.BorderBrush>
                            </Leadtools_Windows_Controls:RasterImageViewer>
                        <Button x:Name="_load" Width="128" Height="24" Content="Load Image" Canvas.Left="2" Canvas.Top="308" Click="_load_Click"/>
                        <Button x:Name="_save" Width="128" Height="24" Content="Save Image" Canvas.Left="1" Canvas.Top="336" Click="_save_Click"/>
                        <TextBox Height="24" Text="C:\test.cmp" TextWrapping="Wrap" x:Name="_savePath" Width="376" Canvas.Left="144" Canvas.Top="335.862"/>
                        <TextBox Text="C:\Users\Public\Documents\LEADTOOLS Images\IMAGE2.CMP" TextWrapping="Wrap" x:Name="_loadPath" Width="376" Height="24" Canvas.Left="144" Canvas.Top="308"/>
                        </Canvas>
                    </Grid>
            </Window>
