Tension Property (AnnClosedCurveObject)

Gets or sets a value that specifies the amount that this AnnClosedCurveObject curve bends between control points. This is a dependency property.

Syntax

C#
Visual Basic
Objective-C
Java
C++

public double Tension {get; set;}

'Declaration

Public Property Tension As Double

'Usage

Dim instance As AnnClosedCurveObject
Dim value As Double

instance.Tension = value

value = instance.Tension

public:
property double Tension {
   double get();
   void set (    double value);
}

Property Value

A value that specifies the amount that this AnnClosedCurveObject curve bends between control points.

Remarks

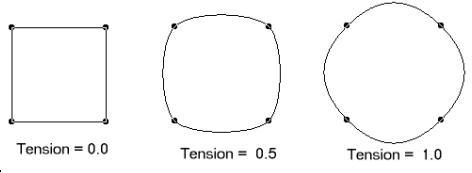

Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap:

Example

For XAML example, refer to AnnClosedCurveObject.

For C#/VB examples, refer to AnnClosedCurveObject.
