L_DicomAddUserInfo

Show in webframe

#include "ltdic.h"

L_LTDIC_API L_INT L_DicomAddUserInfo(hPDU, nType, pData, nLength)

HDICOMPDU hPDU;

/* a DICOM Associate handle */

L_UCHAR nType;

/* type */

L_UCHAR * pData;

/* user data */

L_UINT16 nLength;

/* length */

Appends a User-defined item to the specified DICOM Associate.

Parameter

Description

hPDU

A DICOM Associate handle.

nType

Type of the User-defined item.

pData

Buffer that contains the data for the User-defined item.

nLength

Length of the User-defined item.

Returns

DICOM_SUCCESS

The function was successful.

>0

An error occurred. Refer to Return Codes.

Comments

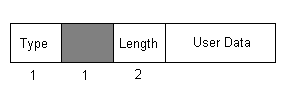

User-defined items may be included in the DICOM Associate to provide any other data the user finds necessary when establishing a DICOM Associate connection. The basic structure of the User-defined item is


where the Type, Length and User Data are all determined by the user. The values shown are the lengths, in bytes, of the elements of the User-defined item.

Required DLLs and Libraries

LTDIC

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

Platforms

Win32, x64, Linux.

See Also

Functions:

L_DicomGetUserInfoCount, L_DicomGetLengthUserInfo, L_DicomGetDataUserInfo, L_DicomGetTypeUserInfo, L_DicomSetUserInfo, L_DicomDelUserInfo

Topics:

Working with DICOM Associate Connections

Example

For an example, refer to L_DicomGetUserInfoCount.
