LEADTOOLS DICOM C++ Class Library Help

LDicomAssociate::AddUserInfo

Show in webframe

#include "ltdic.h"

L_INT LDicomAssociate::AddUserInfo(nType, pData, nLength)

L_UCHAR nType;

/* type */

L_UCHAR * pData;

/* user data */

L_UINT16 nLength;

/* length */

Appends a User-defined item to the DICOM Associate.

Parameter

Description

nType

Type of the User-defined item.

pData

Buffer that contains the data for the User-defined item.

nLength

Length of the User-defined item.

Returns

0

SUCCESS

>0

An error occurred. Refer to Return Codes.

Comments

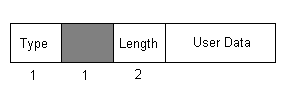

User-defined items may be included in the DICOM Associate to provide any other data the user finds necessary when establishing a DICOM Associate connection. The basic structure of the User-defined item is


where the Type, Length and User Data are all determined by the user. The values shown are the lengths, in bytes, of the elements of the User-defined item.

Required DLLs and Libraries

LTDIC

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

Platforms

Win32, x64

See Also

Functions:

LDicomAssociate::GetUserInfoCount, LDicomAssociate::GetLengthUserInfo, LDicomAssociate::GetDataUserInfo, LDicomAssociate::GetTypeUserInfo, LDicomAssociate::SetUserInfo, LDicomAssociate::DelUserInfo

Topics:

Working with DICOM Associate Connections

Example

For an example, refer to LDicomAssociate::GetUserInfoCount.
