Illustration of Line Styles for Annotations

Show in webframe

(Document and Medical Imaging toolkits)

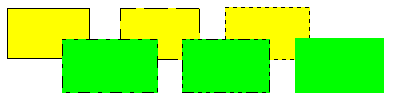

The following rectangle annotation objects illustrate the available line styles. Note that Windows displays all lines greater than 1 pixel as solid.

Back row:	Solid	Dash	Dot
Front row:	Dash-dot	Dash-dot-dot	Null

$image\alineill.gif$
