LBitmap::AdjustTint

Show in webframe

#include "ltwrappr.h"

L_INT LBitmap::AdjustTint(nAngleA, nAngleB, uFlags = 0)

L_INT nAngleA;

/* angular amount to change the A angle */

L_INT nAngleB;

/* angular amount to change the B angle */

L_UINT32 uFlags;

/* flags */

Adjusts the bitmap tint by changing the colors in an image by using two separate color wheel rotations.

Parameter

Description

nAngleA

Value that represents the amount of change in the A angle, in hundredths of degrees. Valid values range between -18000 and 18000.

nAngleB

Value that represents the amount of change in the B angle, in hundredths of degrees. Valid values range between -18000 and 18000.

uFlags

Reserved for future use. Must be 0.

Returns

SUCCESS

The function was successful.

< 1

An error occurred. Refer to Return Codes.

Comments

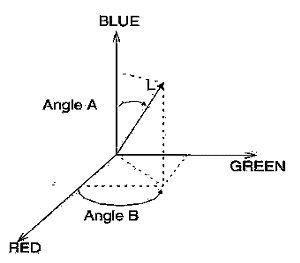

This function changes the colors in an image by using two separate color wheel rotations. For the nAngleA parameter, a positive rotation takes blue toward green and red, as shown in the following figure:


Negative rotation has the opposite effect. For the nAngleB parameter, a positive rotation takes red toward green. Negative rotation has the opposite effect.

Use the LBitmap::ChangeHue function to rotate the color wheel in either direction using one angle change that changes each color in the image. A 180-degree rotation in either direction changes each color to its complement. Positive rotation takes red toward green, green toward blue, and blue toward red. Negative rotation has the opposite effect.

This function only supports colored images.

This function supports 48 and 64 bit color images. Support for 48 and 64 bit color images is available only in the Document/Medical toolkits.

To update a status bar or detect a user interrupt during execution of this function, refer to LBase::EnableStatusCallback.

This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.

This function does not support 32-bit grayscale images. It returns the error code ERROR_GRAY32_UNSUPPORTED if a 32-bit grayscale image is passed to this function.

Required DLLs and Libraries

LTIMGCLR

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Win32, x64.

See Also

Functions:

LBitmap::ChangeHue, LBitmap::ChangeIntensity, LBitmap::GammaCorrect, LBitmap::ChangeContrast, LBitmap::HistoContrast, LBitmap::StretchIntensity, LBitmap::RemapIntensity, LBitmap::Invert, LBitmap::ChangeSaturation, LBitmap::HistoEqualize, LBitmapBase::Fill, LBitmapBase::GetPixelColor, LBitmapBase::PutPixelColor, LBitmap::GetHistogram, LBitmap::ChannelMix, LBitmap::LightControl, LBitmap::SmoothEdges, LBitmap::LocalHistoEqualize, LBitmap::AddWeighted, LBitmap::ColorMerge, LBitmap::ColorSeparate, LBuffer::ConvertColorSpace, LBitmap::Multiply, LBitmap::AutoColorLevel, LBitmap::ColorLevel, LBitmap::SelectiveColor, LBitmap::ChangeHueSatInt, LBitmap::ColorReplace, LBitmap::ColorThreshold, LBitmap::MathFunction, LBitmap::AdaptiveContrast, LBitmap::ApplyMathLogic, LBitmap::ColorIntensityBalance, LBitmap::ContBrightInt, LBitmap::FunctionalLight, LBitmap::MultiScaleEnhancement, LBitmap::SelectData, LBitmap::ShiftData, LBitmap::SampleTarget

Topics:

Raster Image Functions: Modifying Intensity Values



Correcting Colors



Raster Image Functions: Correcting Colors

Example

#define MAKE_IMAGE_PATH(pFileName) TEXT("C:\\Users\\Public\\Documents\\LEADTOOLS Images\\")pFileName
L_INT LBitmap__AdjustTintExample()
{
   L_INT nRet;
   LBitmap LeadBitmap;

   nRet =LeadBitmap.Load(MAKE_IMAGE_PATH(TEXT("IMAGE1.CMP")), 0,ORDER_BGR);
   if(nRet !=SUCCESS)
      return nRet;

   nRet =LeadBitmap.AdjustTint(-6500,2000);
   if(nRet !=SUCCESS)
      return nRet;
   return SUCCESS;
};
