ZigZag

Show in webframe

If you use the following image:

$image\diffuseglowbefore.gif$

And you call the function using the following settings:

Parameter	Value
uAmplitude	47
uAttenuation	92
uFrequency	13
nPhase	-162
CenterPt	(192, 82)
crFill	Black
uFlags	FILL_CLR \| ZG_RAD

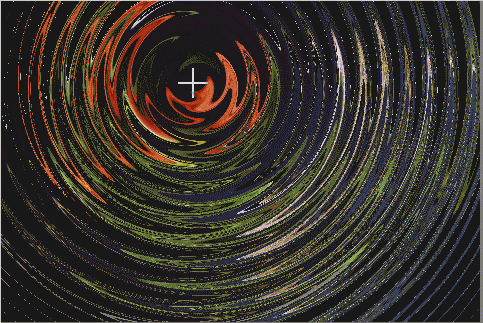

The following figure results:

$image\zigzagcenter.gif$

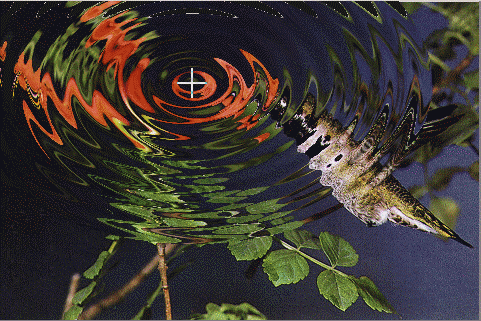

As another settings, if you use the same settings except you use the ZG_POND flag, the following figure results:

$image\zigzagpond.gif$
